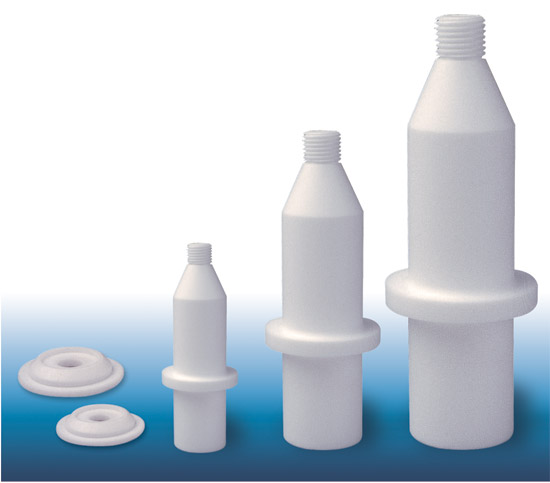

PTFE Insulation Articles

Kaxite Sealing offers PTFE Insulation Articles, essential for superior thermal and electrical insulation in demanding applications. Crafted from high-purity PTFE, these articles ensure durability, chemical resistance, and reliability, ideal for industrial, automotive, and electronics sectors. Experience enhanced safety and performance, providing peace of mind and long-term value. Stand out with Kaxite Sealing's exceptional quality and tailored solutions for your insulation needs.

Send Inquiry

Product Description

[ Features ]

PTFE insulation articles for electronic and electrical industries are manufactured by ram extruding method with PTFE granular resin. It skived by machine. It has the most chemical-resistant and the best dielectrical properties.It has the lowest coeffcient of friction of all known solid materials and a wide range of practicable temperature from -180

- +260

[ Has realiable electric inshlation skived by machine ]

Voltage resistance test under working frequenecy
Joining the insulator with conducting rod at 50Hz,dipping it into oil then testing.
Test result:
All are up to the standard.

[ Partial discharge test ]

Model	Voltage(KV)	Discharge(PC)	Conclusion
N1	29	0	check out
N2	30	3	check out
N3	30	0	check out
N4	32	2	check out
N5	28	0	check out
N6	30	0	check out
