In the demanding world of industrial fluid sealing, the quality of braided packing is paramount. This critical component, used in pumps, valves, and reactors across countless industries, relies on the precision and consistency of its manufacturing process. At the heart of this process lies a specialized piece of equipment: the braiding packing machine. For over two decades, Kaxite Sealing has been at the forefront of designing and manufacturing these sophisticated machines, empowering manufacturers worldwide to produce high-performance, reliable sealing solutions. Our deep expertise in both sealing technology and mechanical engineering allows us to deliver braiding machines that are not just tools, but partners in productivity and quality assurance.
A braiding packing machine is engineered to interlace multiple strands of yarn—such as aramid, carbon, graphite, PTFE, or fiberglass—around a core material to form a dense, cohesive, and flexible seal. The complexity of this operation requires meticulous control over tension, speed, carriage movement, and packing density. Kaxite Sealing's machines are built with this precise control as a foundational principle, ensuring every meter of produced packing meets exacting specifications for diameter, squareness, braid angle, and structural integrity. This results in packing that installs easily, seals effectively under varying pressures and temperatures, and extends service life, reducing downtime and maintenance costs for end-users.
Our machines are designed with modularity and adaptability in mind, capable of handling a wide range of materials and final product specifications. Below are the detailed parameters that define our standard and advanced models.
| Parameter | Specification / Range | Description & Impact |
|---|---|---|
| Maximum Braiding Speed | Up to 120 picks per minute (PPM) on high-speed models | Determines production output. Higher speeds increase throughput while maintaining braid consistency. |
| Yarn Tension Control | Individual, adjustable spring or electronic tensioners per carrier | Critical for uniform braid density and appearance. Prevents loose or tight spots in the final packing. |
| Braid Angle Adjustment | Typically 30° to 60°, adjustable via gear changes or electronic control | Affects packing flexibility, density, and extrusion resistance. Optimized based on core material and application. |
| Core Material Feed | Independent servo-driven core feed system with tension measurement | Ensures the core (e.g., graphite filament, rubber, lubricant-impregnated yarn) is centrally positioned and fed at a constant rate. |
| Power Requirements | 380-480V, 3Phase, 50/60Hz (configurable) | Standard industrial power setup for global operation. |
| Machine Footprint | Approx. 3m x 2m x 2.5m (LxWxH) for a 48-carrier model | Compact design for efficient floor space utilization in manufacturing facilities. |
| Lubrication System | Centralized automatic oil lubrication for horngears and major bearings | Reduces maintenance intervals, ensures smooth operation, and prolongs machine lifespan. |
Kaxite Sealing integrates advanced technologies to address the real-world challenges faced on the production floor.

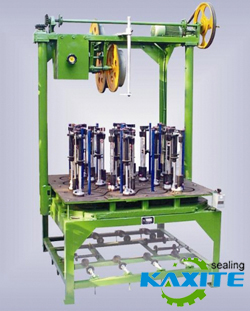

Q: What is the main difference between a 24-carrier and a 48-carrier machine?
A: The number of carriers directly influences the density and strength of the braided packing. A 24-carrier machine uses 24 yarn strands to braid around the core, suitable for standard-duty, smaller diameter, or more flexible packing. A 48-carrier machine doubles the yarn count, producing a much denser, heavier, and more robust packing designed for high-pressure applications, aggressive media, or larger sizes. The choice depends on your target product specifications and market requirements.
Q: Can one machine handle different types of yarn, like switching from aramid to PTFE?
A: Yes, Kaxite Sealing machines are designed for versatility. However, switching between materials with vastly different friction coefficients and tensile properties may require adjustments. You will likely need to recalibrate the yarn tension settings on each carrier and potentially change tension springs or discs. Our machines' recipe management feature makes storing and recalling these specific settings for each material type straightforward, facilitating efficient changeovers.
Q: How critical is the take-up system's tension control?
A: It is absolutely critical. The take-up system pulls the finished braid from the braiding point. Inconsistent or incorrect tension here can cause several defects: if too loose, the packing will coil irregularly and may be too soft; if too tight, it can over-compress the braid, distorting its square shape and potentially damaging the yarns. Our servo-driven take-up systems provide precise, programmable tension profiles to ensure perfect, consistent winding onto spools or reels.
Q: What are the most common maintenance requirements for a braiding packing machine?
A: Regular maintenance is key to longevity. Daily tasks include cleaning fly and debris from carriers and horngears. Weekly, check and clean yarn tensioners. The centralized lubrication system should be checked weekly and reservoirs refilled as needed. Bearings and horngears require inspection every 3-6 months. The most common wear parts are the tensioner discs, carrier springs, and occasionally the horngears themselves, depending on usage. Kaxite Sealing provides comprehensive maintenance manuals and readily available spare parts.
Q: We want to produce packing with an impregnated core (e.g., PTFE/grease). Are your machines suitable?
A: Absolutely. Kaxite Sealing machines are ideally suited for this. We offer specialized core feed systems that can handle pre-impregnated materials or even integrate with inline impregnation systems. The key is ensuring the core feed tension and speed are perfectly synchronized with the braiding carriage speed to prevent buckling or stretching of the soft, impregnated core. Our PLC control allows for fine-tuning this relationship to achieve a homogeneous, fully filled final product.
Q: What kind of training and support does Kaxite Sealing provide with the machine purchase?
A: We believe support is a lifelong partnership. Every machine purchase includes comprehensive on-site installation and commissioning by our expert engineers. We provide hands-on operational training for your team, covering machine setup, daily operation, routine maintenance, and basic troubleshooting. Furthermore, you receive detailed electrical and mechanical manuals. We offer ongoing remote support via phone and video call, and a global network for prompt spare parts supply and advanced technical service if required.
Selecting a braiding packing machine is a significant investment that impacts your product quality and business growth for years to come. Kaxite Sealing stands apart due to our singular focus on the sealing industry. Our engineers understand not just how to build a robust machine, but how the nuances of the braiding process affect the final sealing performance. We don't sell generic machinery; we provide tailored solutions. From the initial consultation where we analyze your target product range, to designing a machine configuration that meets your exact needs, to providing lifelong technical support, our commitment is to your success. Our machines are built for durability, precision, and ease of use, ensuring you can produce superior braided packing that competes and wins in the global marketplace. Trust the expertise forged over 20 years in sealing technology—choose Kaxite Sealing as your engineering partner.
