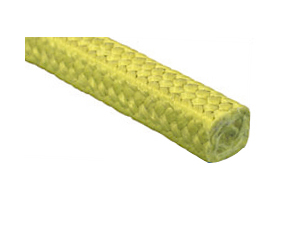

In the demanding world of industrial sealing, reliability is non-negotiable. For high-temperature, high-pressure, and abrasive applications, traditional sealing materials often fall short, leading to downtime, safety hazards, and increased operational costs. This is where advanced materials like Aramid Fiber Packing step in, offering a superior solution. At Kaxite Sealing, we leverage over two decades of expertise to engineer aramid fiber packing that sets the benchmark for performance and durability. This specialized braided packing is manufactured from synthetic aramid fibers, known for their exceptional strength-to-weight ratio, outstanding thermal stability, and remarkable resistance to chemical attack and abrasion.
Kaxite Sealing's aramid fiber packing is designed to handle the toughest conditions in industries such as chemical processing, oil and gas, power generation, and pulp and paper. Unlike generic offerings, our product is the result of precise engineering, incorporating premium aramid fibers and often combined with advanced lubricants and inhibitors to optimize sealability, reduce shaft wear, and extend service life. Whether you're dealing with aggressive media, extreme temperatures, or high shaft speeds, our packing provides a dependable, long-lasting seal that minimizes maintenance frequency and total cost of ownership.
Choosing Kaxite Sealing's aramid fiber packing means investing in a product built for excellence. Below are the core features that define our offering:
To ensure proper selection and application, here are the detailed technical parameters for Kaxite Sealing's standard aramid fiber packing. For specific formulations or custom requirements, please contact our engineering team.
| Property | Test Method | Typical Value / Range | Notes |
|---|---|---|---|
| Material Composition | -- | High-purity Aramid Fibers, PTFE/Lubricant Impregnated | May include corrosion inhibitors |
| Specific Gravity | ASTM D792 | 1.35 - 1.45 | -- |
| Temperature Range (Continuous) | -- | -100°F to 500°F (-73°C to 260°C) | Higher peaks possible in specific media |
| pH Range | -- | 2 - 12 | For continuous immersion |
| Tensile Strength | ASTM D885 | > 550 MPa | Exceeds industry standards |
| Thermal Conductivity | ASTM C518 | 0.04 - 0.05 W/m·K | Good thermal insulation properties |
| Coefficient of Friction | -- | 0.15 - 0.25 (Dynamic, Lubricated) | Dependent on lubrication and pressure |
| Chemical Resistance | -- | Excellent to Most Acids, Alkalis, Solvents, Oils | Consult chart for specific media |
Kaxite Sealing provides aramid fiber packing in a variety of stock sizes to fit most standard pumps, valves, and mixers. Custom sizes and die-molded rings are available upon request.
Q: What are the primary applications for aramid fiber packing?
A: Aramid fiber packing is ideal for sealing rotating and reciprocating shafts in pumps, valves, agitators, and mixers. Common applications include chemical process pumps handling acids and alkalis, boiler feedwater pumps, hot oil systems, refinery services, paper stock pumps, and marine shaft seals. Its versatility makes it a go-to choice for general service where temperature, pressure, or chemical resistance is a concern.
Q: How does aramid fiber packing compare to graphite packing?
A: Both are high-performance materials, but with key differences. Aramid fiber offers superior tensile strength and abrasion resistance, making it tougher in harsh, abrasive services. It generally has better mechanical properties and conformability. Graphite packing typically excels in extremely high-temperature applications (often above 500°C/932°F) and offers excellent thermal conductivity and chemical inertness. The choice depends on the specific balance of temperature, media, abrasion, and shaft speed in your application.
Q: Can Kaxite aramid packing be used in food or pharmaceutical processing?
A: Standard aramid fiber packing is not typically certified for direct food or pharmaceutical contact. However, Kaxite Sealing can provide specialized grades manufactured with FDA-lubricants or other compliant materials upon request. It is crucial to specify the requirement for food-grade or USP Class VI certification when inquiring.
Q: What is the proper installation procedure for this type of packing?
A: Correct installation is critical for performance and longevity. Key steps include: 1) Clean the shaft/sleeve and stuffing box thoroughly. 2) Measure and cut each ring precisely using the "wrap-and-mark" method on the shaft, using a sharp blade for a clean, square cut. 3) Stagger the joints of each ring by 90 degrees around the shaft. 4) Use a proper installation tool to seat each ring firmly without over-pounding. 5) Tighten the gland follower evenly and hand-tight only for initial start-up. After a short run-in period (15-30 minutes), re-tighten slightly to achieve a minimal, controlled leakage for lubrication and cooling.
Q: How do I determine the correct size and style of packing for my pump?
A: The correct size is determined by the stuffing box bore and the shaft diameter. The formula is: Packing Size = (Stuffing Box Bore - Shaft Diameter) / 2. The style (e.g., square braid vs. braid over braid) depends on pressure and equipment type. Square braid is common for general service, while B.O.B. is often used for higher pressure or reciprocating service. The engineers at Kaxite Sealing are always available to assist with selection based on your specific equipment model and operating conditions.
Q: What maintenance schedule should I expect with Kaxite aramid packing?
A: With proper installation and adjustment, Kaxite aramid fiber packing provides exceptionally long service life. Maintenance typically involves periodic gland adjustment to compensate for normal wear and maintain the desired leakage rate (usually a few drops per minute). The interval can range from several months to over a year, depending heavily on operating conditions such as shaft speed, temperature, pressure, and media abrasiveness. Regular monitoring of leakage and temperature at the stuffing box is the best guide for maintenance needs.
Q: Is this packing suitable for high-speed centrifugal pumps?
A: Yes, aramid fiber packing is an excellent choice for many centrifugal pump applications due to its strength, thermal resistance, and low shaft wear characteristics when properly lubricated. For very high-speed applications, it is essential to ensure adequate cooling and lubrication, often provided by the sealed fluid itself or an external flush. Consulting with Kaxite Sealing for application-specific advice is recommended for pumps with shaft speeds exceeding 3600 RPM.
Selecting a sealing partner is as important as selecting the material. Kaxite Sealing distinguishes itself through unwavering commitment to quality, technical support, and customer success. Our aramid fiber packing is not an off-the-shelf commodity; it is precision-engineered. We control the manufacturing process from raw material selection to final braiding and impregnation, ensuring every coil meets our rigorous standards for consistency and performance. Our technical support team, comprised of seasoned engineers, provides unparalleled application assistance, from product selection and installation guidance to troubleshooting complex sealing challenges. We understand that downtime is costly, and our goal is to provide sealing solutions that maximize equipment uptime and reliability. Partner with Kaxite Sealing and experience the difference that two decades of focused expertise and a customer-centric approach can make for your operations.
