Precision Engineering: The Machines Behind Reliable Spiral Wound Gaskets
The integrity of a piping system hinges on the quality of its seals. Spiral wound gaskets, renowned for their resilience under extreme pressure and temperature, are a critical component across industries like oil & gas, petrochemical, power generation, and pharmaceuticals. However, the performance of these gaskets is fundamentally dictated by the precision and capability of the machines that manufacture them. At Kaxite Sealing, we understand that superior sealing solutions begin with superior manufacturing technology. Our advanced machinery is engineered to produce gaskets that meet the most stringent international standards, ensuring leak-free operation and long-term safety.

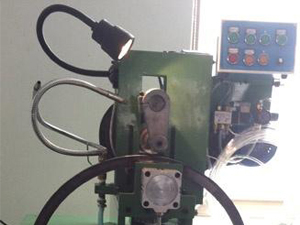

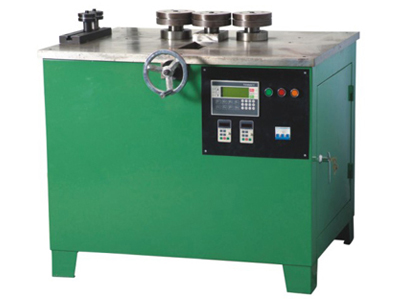

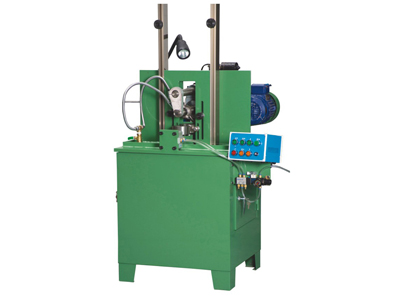

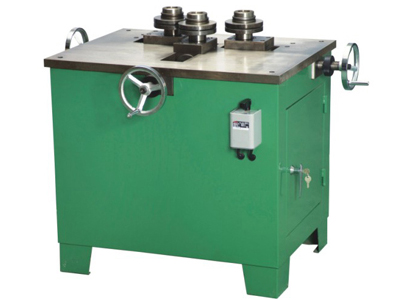

Core Components of a Modern Spiral Wound Gasket Machine
A state-of-the-art spiral wound gasket winding machine is a complex assembly of synchronized systems. Each component plays a vital role in transforming raw materials—primarily a pre-formed V-shaped metal strip and a flexible filler material (like graphite, PTFE, or ceramic)—into a robust, dimensionally perfect seal.

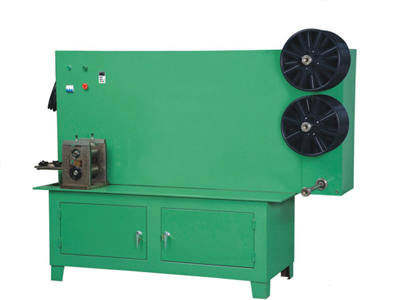

- Uncoiling & Feeding System: Precision tension controllers and guides ensure the metal and filler strips are fed into the winding head smoothly and without distortion, which is crucial for consistent gasket density.
- Computerized Winding Head: The heart of the machine. It precisely winds the strips at a predetermined angle and tension. Advanced servo motors control the rotation and translation movements, allowing for complex winding patterns and exact control over the gasket's inner and outer diameters.
- CNC Control Panel: The operator interface for inputting all gasket parameters: ID, OD, thickness, number of plies, winding density, and strip specifications. Modern systems feature touch-screen controls and store hundreds of job recipes for repeatability.
- Tooling & Mandrel Set: High-grade, hardened steel mandrels define the gasket's inner diameter. Quick-change systems allow for fast job switching, increasing production efficiency. Kaxite Sealing machines support a vast range of standard and custom mandrel sizes.

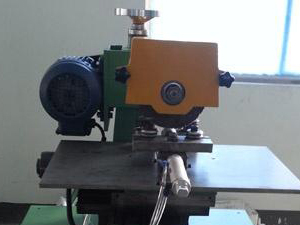

- Cutting & Finishing Mechanism: An integrated, automatic cutting tool (often laser or mechanical) severs the wound gasket at the exact point to achieve perfect joint alignment. Some systems include automatic marking or branding stations.
- Vision Inspection System (Optional): High-resolution cameras automatically check for defects in the winding pattern, filler placement, or surface imperfections, ensuring 100% quality control.
Technical Specifications of Kaxite Sealing Gasket Winding Machines
Our machinery is built for durability, precision, and versatility. The following table outlines the key specifications of our flagship models, the KS-SWG3000 and KS-SWG5000 series.
| Parameter / Feature | KS-SWG3000 Series (Standard Duty) | KS-SWG5000 Series (Heavy Duty) |
|---|---|---|
| Gasket Inner Diameter (ID) Range | 15 mm (1/2") to 1500 mm (60") | 12 mm (1/2") to 3000 mm (120") |
| Gasket Outer Diameter (OD) Max | Up to 1650 mm (65") | Up to 3200 mm (126") |
| Metal Strip Width Range | 3.0 mm to 4.5 mm | 3.0 mm to 6.0 mm |
| Metal Strip Thickness | 0.15 mm to 0.25 mm | 0.15 mm to 0.30 mm |
| Winding Speed | Up to 250 RPM | Up to 200 RPM (optimized for heavy strips) |
| Control System | Industrial PC with 10" Touchscreen, PLC Logic | Industrial PC with 15" Touchscreen, Advanced PLC & Servo Drivers |
| Power Requirements | 400V / 3 Phase / 50-60Hz / 5.5 kW | 400V / 3 Phase / 50-60Hz / 7.5 kW |
| Key Feature | Automatic density control, recipe storage, LED work lighting. | Dual-winding head option, integrated laser marking, automatic tension calibration. |
| Typical Applications | General plant maintenance, standard ANSI B16.20, API 601 gaskets. | Large diameter heat exchangers, turbines, nuclear applications, custom critical seals. |
Choosing the Right Machine: A Guide to Key Parameters
Selecting a spiral wound gasket machine requires careful analysis of your production needs. Here are the critical parameters to consider, which are fully configurable in Kaxite Sealing equipment:
- Winding Density (Plys per Inch): Controlled by the gear ratio and feed rate. Higher density (e.g., 16 PPI) is for higher pressure. Our machines offer precise digital control over this parameter.
- Strip Material Compatibility: The machine must handle various metals (304/316 SS, Inconel, Titanium, Monel) and fillers (Flexible Graphite, PTFE, Mica, Ceramic) without cross-contamination. Our feeders are designed for quick material changeovers.
- Tolerance Capability: The ability to consistently produce gaskets within tight dimensional tolerances (e.g., ±0.1mm on ID/OD) is non-negotiable for API and NORSOK applications. Kaxite machines achieve this through rigid construction and precision ball screws.
- Automation Level: From semi-automatic feeding to fully automated lines with robotic part handling. This dictates labor requirements and output volume.
- Data Logging & Traceability: Modern standards require production traceability. Higher-end Kaxite models can log production data (serial number, operator, parameters) for each gasket produced.
Frequently Asked Questions About Spiral Wound Gasket Machines
What are the main advantages of using a CNC-controlled machine over a manual or semi-automatic one?
CNC control brings unparalleled consistency, accuracy, and repeatability. Once a job recipe is programmed, every gasket produced will be identical, eliminating human error in winding tension, count, and diameter. It drastically reduces material waste, ensures compliance with engineering specifications, and allows for the production of complex, non-standard gasket profiles that are impossible to make manually. Furthermore, it enables detailed production reporting for quality assurance.
How does the machine ensure consistent winding tension, and why is it so important?
Consistent tension is achieved through electronically controlled servo motors and precision torque control systems in the strip feeding mechanism. The Kaxite Sealing machines constantly monitor and adjust the tension in real-time. Consistent tension is critical because it directly determines the density and compression behavior of the finished gasket. Variations in tension lead to "soft" or "hard" spots in the gasket ring, which can cause localized leakage under load.
Can one machine produce gaskets for all pressure classes (e.g., 150lb, 300lb, 600lb, 900lb)?
Yes, a well-designed modern machine like those from Kaxite Sealing is highly versatile. The pressure class of a spiral wound gasket is determined by its physical dimensions (width, thickness) and its winding density. By simply changing the mandrel (for ID), adjusting the OD stop, and selecting the appropriate winding density and strip width in the CNC program, the same machine can produce gaskets suitable for ASME B16.20 pressure classes from 150 to 2500.
What maintenance do these machines typically require?
Regular preventative maintenance is key to long-term accuracy. Daily tasks include cleaning debris (graphite dust, metal chips) from the winding head and guides. Weekly checks involve lubricating guide rails and ball screws, and inspecting cutting blades for wear. Periodic maintenance (every 6-12 months) should include checking servo motor alignment, calibrating tension sensors, and verifying the accuracy of the CNC positioning system. Kaxite Sealing provides comprehensive maintenance manuals and on-call technical support.
How does Kaxite Sealing ensure the quality of the gaskets produced by its machines?
Quality is engineered into every Kaxite machine from the ground up. We use high-precision linear guides and ball screws, industrial-grade PLCs and servo systems, and rigid, vibration-dampening frames. Furthermore, our control software includes built-in diagnostic checks and calibration routines. For the highest assurance, we recommend the optional integrated vision system, which performs an automatic optical inspection of every gasket, checking for filler gaps, metal strip overlap consistency, and surface defects before the part is even removed from the mandrel.
What training and support come with purchasing a Kaxite Sealing machine?
Kaxite Sealing provides a complete support package. This includes on-site installation and commissioning by a factory engineer, comprehensive hands-on training for your operators and maintenance staff on machine operation, programming, and routine maintenance. We also supply detailed electronic and hard-copy manuals, a library of instructional videos, and access to our 24/7 technical support hotline. Remote diagnostic support is available for software-related issues.
