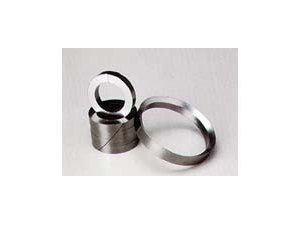

Die-formed Graphite Ring

Die-formed Graphite Ring is a cornerstone component in modern industrial sealing technology, representing a significant advancement over traditional packing methods. At Kaxite Sealing, we engineer these rings to deliver uncompromising performance in the most demanding environments, from high-temperature furnaces to aggressive chemical processing systems. The die-forming process itself is a key differentiator, involving the precise compression of high-purity flexible graphite foil into specific, uniform shapes using hardened steel dies. This method ensures each ring possesses exceptional dimensional accuracy, structural integrity, and consistent density throughout its cross-section, eliminating the weaknesses often found in spiral-wound or stamped alternatives. The result is a sealing solution that offers superior resilience, minimal creep relaxation, and reliable long-term sealing force. The fundamental material, flexible graphite, is renowned for its unique set of properties. It is inherently self-lubricating, chemically inert to most media, and capable of withstanding extreme temperatures from cryogenic levels up to 3000°F (1650°C) in non-oxidizing atmospheres, or around 800°F (430°C) in continuous oxidizing environments. When die-formed, these inherent qualities are locked into a robust, cohesive ring structure. Kaxite Sealing utilizes only premium, corrosion-inhibited flexible graphite foils, ensuring our die-formed rings provide outstanding protection against galvanic corrosion on flange surfaces, a critical consideration for system longevity. **Key Product Parameters & Specifications** Understanding the precise specifications of a die-formed graphite ring is essential for correct selection and optimal performance. Below are the critical parameters that define Kaxite Sealing's product line. **Standard Material Properties:** * **Base Material:** Flexible Graphite, reinforced with corrosion inhibitor. * **Temperature Range:** * **Inert/Reducing Atmospheres:** -400°F to 3000°F (-240°C to 1650°C) * **Oxidizing Atmospheres (Continuous):** Up to 800°F (430°C) * **Oxidizing Atmospheres (Intermittent):** Up to 1000°F (540°C) * **pH Range:** 0 – 14 (Highly resistant to most acids, alkalis, and solvents). * **Thermal Conductivity:** Excellent, aiding in heat dissipation. * **Compressibility:** 40% – 60% (Allows for effective sealing on uneven surfaces). * **Recovery:** 15% – 25% (Provides resilience against system vibration and pressure fluctuations). * **Density:** Typically 90-110 lbs/ft³ (1.44-1.76 g/cm³) as formed, customizable. * **Pressure Rating:** Suitable for sealing pressures exceeding 2,200 psi (150 bar), dependent on flange design and ancillary components. **Standard Size & Tolerance Table (Per ASME/API Standards):** The following table outlines common ring sizes and the manufacturing tolerances upheld by Kaxite Sealing.

Ring Number (Example)	Inside Diameter (ID)	Outside Diameter (OD)	Cross-Section Width	Tolerance on ID/OD	Tolerance on Width
R-50	2.50 in (63.5 mm)	3.50 in (88.9 mm)	0.50 in (12.7 mm)	±0.005 in (±0.13 mm)	±0.003 in (±0.08 mm)
R-80	4.00 in (101.6 mm)	5.25 in (133.4 mm)	0.625 in (15.9 mm)	±0.006 in (±0.15 mm)	±0.004 in (±0.10 mm)
R-120	8.00 in (203.2 mm)	9.50 in (241.3 mm)	0.75 in (19.1 mm)	±0.008 in (±0.20 mm)	±0.004 in (±0.10 mm)
R-200	12.00 in (304.8 mm)	14.00 in (355.6 mm)	1.00 in (25.4 mm)	±0.010 in (±0.25 mm)	±0.005 in (±0.13 mm)

*(Note: Kaxite Sealing can manufacture die-formed graphite rings to virtually any size, including metric dimensions, with custom tolerances.)* **Available Configurations & Enhancements:** * **Standard Die-Formed Rings:** The core product for flat-face and raised-face flanges. * **Inner/Outer Ring Reinforced:** Includes stainless steel (e.g., SS 304, 316) or other alloy inserts to prevent radial blow-out in high-pressure or cycling services. * **Profile Variations:** Oval, octagonal, and other custom profiles to fit specific groove geometries. * **Surface Coatings:** Application of specialized coatings (e.g., oxidation-inhibiting, anti-stick) for enhanced performance in unique operating conditions. **Typical Applications:** * Heat Exchangers * Boiler Manways and Handholes * Reactor Flanges * Turbine Casing Joints * Chemical Process Piping * Refinery Hydroprocessing Units * Power Generation Systems * High-Temperature Bake Ovens **Die-formed Graphite Ring FAQ (Frequently Asked Questions)** What exactly is the difference between a die-formed graphite ring and a spiral-wound gasket with graphite filler? The primary difference lies in construction and integrity. A spiral-wound gasket is created by winding alternating strips of metal and filler material (like graphite) into a V-shape. This creates a layered structure with potential leak paths. A die-formed graphite ring is a single, homogeneous piece of compressed graphite created in one stamping process. It has uniform density throughout, no internal seams or layers, and offers more consistent sealing performance with superior resistance to creep and flange rotation. How does the die-forming process at Kaxite Sealing improve performance over cut or stamped rings? Our die-forming process applies immense, controlled pressure to compress the graphite foil uniformly in all directions within a precision-machined die cavity. This creates a ring with a smooth, dense skin and a controlled, consistent internal density. Cut or stamped rings are simply cut from a sheet, leaving exposed "end grain" graphite on the inner and outer diameters, which is more prone to dusting, erosion, and handling damage. Die-forming encapsulates the graphite structure, resulting in a cleaner, stronger, and more durable ring. Can die-formed graphite rings be used for high-pressure applications? Absolutely. While pure flexible graphite has pressure limitations, Kaxite Sealing's die-formed rings, especially when specified with inner and/or outer stainless steel retaining rings, are exceptionally capable for high-pressure service. The steel rings contain the graphite radially, preventing extrusion into the flange gap even under extreme pressure and temperature cycling. It is crucial to select the appropriate reinforcement style based on the specific pressure, temperature, and media. Are these rings suitable for steam service? Yes, die-formed graphite rings are an excellent choice for steam service across a wide range of pressures and temperatures. Their thermal stability and resilience make them ideal for applications like steam turbine casings, boiler manways, and steam line flanges. Kaxite Sealing uses corrosion-inhibited graphite to further protect flange surfaces from potential pitting in steam condensate environments. How do I determine the correct density for my application? Density is a critical factor influencing sealing force, recovery, and extrusion resistance. For standard flange connections, our default density range of 90-110 lbs/ft³ is suitable for most applications. For higher pressure services or where maximum extrusion resistance is needed, a higher density (up to 120 lbs/ft³) may be specified. For very low bolt load situations or delicate flanges, a lower density may be preferred. Our engineering team at Kaxite Sealing can provide specific recommendations based on your operating conditions. What are the handling and storage recommendations for die-formed graphite rings? Handle rings with care to avoid nicks or breaks. While more robust than cut rings, they should not be dropped or bent. Store them in their original packaging in a clean, dry, and temperature-stable environment. Avoid exposure to moisture, as while graphite itself is not hygroscopic, absorbed moisture can cause issues during rapid heat-up in a system. Keep away from ozone-generating equipment. Can Kaxite Sealing provide custom shapes and profiles beyond standard rings? Yes, custom engineering is a core strength of Kaxite Sealing. We regularly produce die-formed graphite rings in oval, octagonal, rectangular, and other non-standard shapes to fit proprietary or specialized equipment grooves. We work from customer-supplied drawings or samples to create precision dies that produce rings with the exact dimensional and performance characteristics required. What flange surface finish is recommended for optimal performance with a die-formed graphite ring? A smooth, non-serrated flange finish is ideal. A finish between 125 and 250 microinches Ra (3.2 to 6.3 µm Ra) is typically recommended. Extremely rough finishes can cause excessive graphite wear, while mirror-finish surfaces may reduce the ring's ability to grip and seal effectively. The inherent conformability of the die-formed ring compensates for minor flange imperfections. How does the thermal cycling performance of a die-formed ring compare to other gaskets? Die-formed graphite rings excel in thermal cycling applications. Their high thermal conductivity allows them to heat up and cool down uniformly with the flange, minimizing thermal stress. Their excellent recovery properties allow the ring to maintain a seal as the flange bolts expand and contract with temperature changes. This performance is far superior to many non-metallic gaskets and rivals that of expensive semi-metallic alternatives. What information should I provide to Kaxite Sealing to get an accurate quotation or technical recommendation? To ensure we provide the correct product, please have the following information ready: Flange standards (ASME B16.20, API 6A, DIN, etc.), nominal size and pressure class, inside and outside diameter of the gasket contact area or groove dimensions, operating temperature and pressure, media being sealed, and any known cycling conditions. For replacements, the old ring or a detailed sketch is extremely helpful.
