In the demanding world of industrial fluid and gas containment, achieving a reliable, leak-free seal under extreme pressure and temperature conditions is non-negotiable. Standard flat gaskets often fall short in these rigorous applications. This is where the specialized engineering of Serrated Gaskets becomes essential. As a cornerstone of high-integrity sealing solutions, serrated gaskets are engineered to create a superior metal-to-metal bite, providing exceptional sealing performance for flange connections in critical service environments.
At Kaxite Sealing, we leverage decades of metallurgical and engineering expertise to manufacture serrated gaskets that meet the most stringent global standards. Our products are trusted in industries where failure is not an option, including oil and gas production, petrochemical refining, power generation, and high-pressure pipeline systems. This guide delves into the design, specifications, and application best practices for serrated gaskets, showcasing why they are the preferred choice for engineers worldwide.

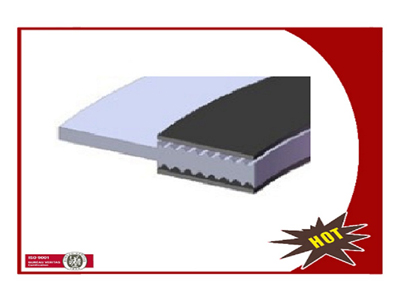

Serrated gaskets, often referred to as serrated metal gaskets or ring-type joints (RTJ) in specific profiles, are machined from solid metal rings. Their defining characteristic is a series of precisely machined concentric grooves or "serrations" on both the top and bottom sealing faces. These serrations create sharp, concentric ridges.
The sealing principle is mechanical and highly effective. When the flange bolts are torqued, the sharp ridges of the gasket bite into the softer material of the flange faces (or into a companion gasket). This plastic deformation creates multiple concentric rings of intimate metal-to-metal contact, forming a labyrinth-like seal that is exceptionally resistant to leakage of high-pressure gases or liquids. The serrations also accommodate minor imperfections in the flange surfaces, ensuring a tight seal even when surface finishes are not perfectly smooth.
The performance of a serrated gasket is dictated by its material, dimensions, and serration profile. Kaxite Sealing offers a comprehensive range manufactured to exacting specifications.
We offer serrated gaskets in a wide array of materials to suit service conditions:
Kaxite Sealing gaskets are manufactured to international standards such as ASME B16.20, API 6A, and customer-specific drawings. Common profiles include:
| Nominal Pipe Size (NPS) | Outside Diameter (OD) - Inches | Inside Diameter (ID) - Inches | Thickness (T) - Inches | Number of Serrations | Approx. Pressure Rating |
|---|---|---|---|---|---|
| 1/2 | 1.84 | 0.84 | 0.19 | 4 | 5,000 - 10,000 psi |
| 2 | 3.25 | 2.00 | 0.25 | 6 | 5,000 - 10,000 psi |
| 4 | 5.25 | 4.00 | 0.31 | 8 | 5,000 - 10,000 psi |
| 8 | 9.50 | 7.88 | 0.44 | 12 | 2,500 - 5,000 psi |
| 12 | 13.75 | 11.75 | 0.50 | 16 | 2,500 - 5,000 psi |
Note: Dimensions and pressure ratings are indicative. Always consult Kaxite Sealing engineering for application-specific specifications.
Q: When should I use a serrated gasket instead of a spiral wound or flat gasket?
A: Serrated gaskets are the optimal choice for high-pressure, high-temperature applications involving gases, light hydrocarbons, or hazardous fluids where absolute leak integrity is critical. They are preferred over spiral wound gaskets in services prone to rapid pressure fluctuations or fire scenarios, as they have no filler material to burn out. Use flat gaskets only for low-pressure, non-critical water or air services.
Q: Can serrated gaskets be used on standard raised face (RF) flanges?
A: Yes, concentric or spiral serrated gaskets are specifically designed for use on flat face or raised face flanges. However, it is crucial that the flange surface finish is compatible (typically 125-250 µin Ra serration finish is recommended). For Ring Type Joint (RTJ) serrated gaskets, you must have matching RTJ grooved flanges as per ASME B16.5 or API 6A specifications.
Q: How do I determine the correct material grade for my application?
A: Material selection depends on three primary factors: the corrosive nature of the process fluid, the operating temperature, and the required mechanical strength. A Kaxite Sealing engineer can assist you with this critical selection. Generally, Soft Iron is used for non-corrosive hydrocarbons, 316 Stainless for general corrosion, and high-grade alloys like Inconel for chloride-rich or high-temperature environments.
Q: What is the proper installation torque for a serrated gasket?
A: Correct bolt torque is vital. Under-torquing fails to create an adequate seal, while over-torquing can crush the serrations or damage flanges. Torque should be calculated based on the gasket material, size, service pressure, and bolt specifications (grade, lubrication). Kaxite Sealing provides detailed installation guidelines and can recommend specific torque values using industry-standard formulas to ensure optimal sealing performance.
Q: How many times can I safely reuse a serrated gasket?
A: Reusability depends on the service conditions and handling. A gasket used in a clean, non-corrosive, steady-temperature service can often be reused 2-3 times if it shows no signs of cracking, flattened serrations, or corrosion. Always perform a thorough visual inspection. Gaskets from severe service (high temperature cycling, corrosive media) should typically be replaced every time the joint is broken. Kaxite Sealing recommends a conservative approach for critical applications.
Q: Do you offer custom-designed serrated gaskets for non-standard flanges?
A: Absolutely. A significant part of our business at Kaxite Sealing is providing custom sealing solutions. We can manufacture serrated gaskets to any required size, serration pattern, and material specification from customer-provided drawings or samples. Our advanced CNC machining ensures precision for even the most unique applications.
Selecting the right serrated gasket is only half the battle; proper handling and installation are equally crucial for a leak-free joint.
