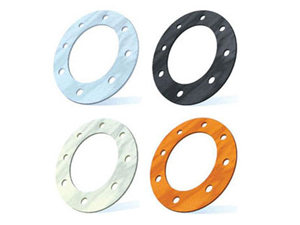

For decades, asbestos gaskets were the industry standard for creating robust, heat-resistant seals in high-temperature and high-pressure applications. While modern regulations have led to the development of alternative materials, understanding their historical use, specifications, and the critical importance of safe handling remains essential for industries managing legacy equipment or specific, approved applications. At Kaxite Sealing, we prioritize safety and compliance while providing the technical knowledge necessary for informed decision-making regarding sealing solutions. These gaskets were primarily composed of chrysotile asbestos fibers, often combined with binders like rubber or graphite, to form sheets or pre-cut shapes capable of withstanding extreme conditions that would degrade most other materials.
The performance of asbestos gaskets is defined by a set of critical parameters. At Kaxite Sealing, our documentation for historical and specialty products adheres to rigorous specification standards to ensure clarity and safety.
| Property | Test Method | Typical Value (Rubber-bound) | Typical Value (Graphite-bound) |
|---|---|---|---|
| Tensile Strength | ASTM F152 | 2500 psi min | 2000 psi min |
| Compression Set | ASTM F36 | 35% max | 25% max |
| Density | ASTM F1315 | 1.75 - 2.0 g/cm³ | 1.9 - 2.1 g/cm³ |
| Recovery | ASTM F36 | 45% min | 40% min |
| Creep Relaxation | ASTM F38 | 15% max | 10% max |
| Flammability | Non-combustible | Self-extinguishing | Self-extinguishing |
Due to their inherent properties, asbestos gaskets were ubiquitous in industries requiring reliable thermal and pressure sealing. It is crucial to note that in most regions, their use is heavily restricted or banned. Any current use must be in full compliance with local and international regulations (e.g., OSHA, REACH). Legacy or specific applications included:
Kaxite Sealing operates with a paramount commitment to safety and environmental responsibility. We strictly adhere to all global regulations concerning hazardous materials. While we provide technical data for historical reference and for very specific, legally compliant scenarios, we strongly advocate for and supply a comprehensive range of superior, non-asbestos sealing solutions. Our modern alternatives, such as aramid fiber, glass fiber, and flexible graphite gaskets, offer equivalent or superior performance without the associated health risks.
Q: What are the primary reasons asbestos was used in gaskets?
A: Asbestos was favored for its unique combination of properties: exceptional natural heat resistance (it is a mineral fiber), good tensile strength, flexibility when blended with binders, and resistance to chemical attack, creep relaxation, and combustion. This made it a seemingly ideal, all-purpose material for demanding industrial sealing long before the severe health risks were fully understood.
Q: Are asbestos gaskets still legal to use or purchase?
A: Legality varies drastically by country and region. In the United States, their manufacture, import, and general use are banned under the EPA's Asbestos Ban and Phase-Out Rule, with very limited exceptions. In the EU, REACH regulations severely restrict their use. It is illegal to supply them for most applications. Always consult current local, state, and national regulations. Kaxite Sealing complies with all applicable laws and does not supply asbestos-based products for prohibited uses.
Q: What are the main health risks associated with handling asbestos gaskets?
A: The primary risk comes from inhaling airborne asbestos fibers. When old, dry, or brittle asbestos gaskets are cut, sanded, drilled, or removed without proper controls, they can release microscopic fibers. Prolonged inhalation of these fibers is directly linked to serious, often fatal lung diseases, including asbestosis (scarring of lung tissue), lung cancer, and mesothelioma (a cancer of the lung and abdominal lining). There is no safe exposure level.
Q: How should existing asbestos gaskets be handled or removed safely?
A: Safe handling is critical. Never dry-sand, saw, or abrade an asbestos gasket. Removal must be performed by trained, licensed asbestos abatement professionals using strict containment protocols, personal protective equipment (PPE) like respirators, and wet methods to suppress dust. The removed material must be disposed of as hazardous waste in accordance with local regulations. Kaxite Sealing recommends contacting a certified asbestos abatement contractor for any removal project.

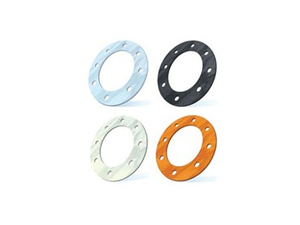

Q: What are the best non-asbestos alternatives available today?
A: Modern technology has produced excellent alternatives. Kaxite Sealing provides a full portfolio, including:
Q: Can I simply replace an old asbestos gasket with a non-asbestos one of the same thickness?
A: Not always. While a direct swap is sometimes possible, it requires engineering review. Non-asbestos materials may have different compression and torque characteristics. It is essential to consult the gasket manufacturer's specifications and potentially re-calculate the bolt load required for an effective seal. Kaxite Sealing's technical team can assist in selecting the correct modern replacement based on your application data to ensure a safe and leak-free installation.
Q: How can I identify if an old gasket in my equipment contains asbestos?
A: Visual identification alone is unreliable. Many non-asbestos materials look similar. The only definitive method is laboratory analysis by a certified asbestos testing lab using Polarized Light Microscopy (PLM) or Transmission Electron Microscopy (TEM). If you suspect a gasket contains asbestos, treat it as such until proven otherwise. Do not disturb it. Contact a professional testing service for a sample analysis.
