In demanding industrial environments where reliability is non-negotiable, the choice of sealing material is paramount. Copper gaskets stand out as a premier solution, offering a unique combination of malleability, thermal conductivity, and corrosion resistance. For over two decades, Kaxite Sealing has been at the forefront of engineering high-performance sealing components, mastering the metallurgy and manufacturing processes that make copper gaskets exceptionally reliable for critical applications.
These gaskets are primarily utilized in applications involving high temperatures and pressures, such as in automotive engines, aerospace systems, hydraulic machinery, and various oil & gas fittings. The inherent softness of copper allows it to deform under bolt load, effectively filling microscopic imperfections on flange surfaces to create a gas-tight or liquid-tight seal. At Kaxite Sealing, we specialize in transforming this versatile material into precision-engineered seals that meet the most stringent international standards.
Why do engineers consistently specify copper for gaskets? The material properties provide distinct benefits:
At Kaxite Sealing, we manufacture copper gaskets to exact customer specifications. Our standard offerings are characterized by the following detailed parameters:
We utilize several high-purity copper alloys to meet different requirements:
All our materials comply with ASTM B152, ASTM B370, and other relevant international standards, ensuring batch-to-batch consistency and reliability.
Kaxite Sealing copper gaskets are precision-cut. Below is a table outlining our standard dimensional tolerances for flat ring-type gaskets.
| Parameter | Standard Tolerance (inches) | Precision Tolerance (inches) | Applicable Standards |
|---|---|---|---|
| Inside Diameter (ID) | ±0.005 | ±0.002 | ASME B16.21, ISO 21294 |
| Outside Diameter (OD) | ±0.010 | ±0.005 | ASME B16.21, ISO 21294 |
| Thickness | ±0.003 | ±0.001 | ASTM B370 |
| Cross-Section Width (for rings) | ±0.005 | ±0.002 | Customer Spec / ASME |
| Surface Flatness | <0.002 per inch | <0.001 per inch | ASME Y14.5 |
| Property | Typical Value (C11000) | Test Method |
|---|---|---|
| Density | 0.323 lb/in³ (8.94 g/cm³) | ASTM B193 |
| Tensile Strength (Annealed) | 32,000 psi (220 MPa) | ASTM E8 |
| Yield Strength (0.5% extension) | 10,000 psi (69 MPa) | ASTM E8 |
| Elongation (in 2") | 45% | ASTM E8 |
| Hardness (Rockwell F) | 40 HRF (Annealed) | ASTM E18 |
| Thermal Conductivity @ 68°F | 391 W/m·K | ASTM E1225 |
| Coefficient of Thermal Expansion | 9.8 x 10⁻⁶ /°F (17.6 x 10⁻⁶ /°C) | ASTM E228 |
| Maximum Continuous Service Temp | 900°F (482°C) in oxidizing atmosphere | ASTM B152 |
All styles can be supplied in various tempers (annealed, quarter-hard, half-hard) to achieve the desired balance of conformability and strength.
Q: When should I choose a copper gasket over a softer material like graphite or rubber?

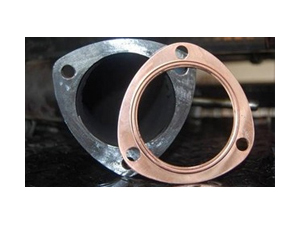

A: Copper gaskets are the preferred choice in high-temperature, high-pressure applications where the seal must also act as a thermal conductor or where extrusion under load is a concern with softer materials. They are ideal for exhaust manifolds, turbochargers, heat exchangers, and high-pressure fuel lines. For low-temperature, low-pressure applications with highly corrosive chemicals not compatible with copper, a PTFE or rubber gasket might be more suitable. Kaxite Sealing engineers can help you make the correct material selection.
Q: How do I determine the correct thickness for my copper gasket application?
A: The thickness depends on flange surface finish, operating pressure, and bolt load. A general rule is that thicker gaskets (e.g., 1/16" or 1.5mm) accommodate rougher flange surfaces better. For smooth, machined surfaces, thinner gaskets (0.5mm) are sufficient. The required sealing stress for copper is typically between 15,000 and 30,000 psi. Consulting the ASME Boiler and Pressure Vessel Code or providing your flange specifications to Kaxite Sealing allows us to recommend the optimal thickness and temper.
Q: Can copper gaskets be reused after disassembly?
A: This is a common question. Annealed (soft) copper gaskets are designed to deform plastically during initial installation, creating the seal. Therefore, they are generally not recommended for reuse as they have already taken a "set" and may not conform properly a second time. However, harder tempers (like half-hard) in less critical, low-pressure applications might be reusable if inspected carefully for cracks, deep compression marks, or distortion. Kaxite Sealing always advises on the expected service life and reusability based on your specific operating conditions.
Q: What is the best method for installing a copper gasket to ensure a leak-free seal?
A: Proper installation is critical. First, ensure both flange faces are clean, dry, and free of old gasket material and burrs. Lightly coat the gasket with an anti-seize compound or a high-temperature copper paste to prevent galling and facilitate future disassembly. Align the gasket carefully. Tighten the bolts in a star or crisscross pattern in multiple stages (e.g., 30%, 60%, 100% of final torque) to apply even compression across the entire flange. Always refer to the equipment manufacturer's or Kaxite Sealing's provided torque specifications.
Q: Are there any chemicals or environments that are incompatible with copper gaskets?
A: Yes. While copper has good general corrosion resistance, it is not suitable for all media. It is susceptible to attack by ammonia, ammonium compounds, oxidizing acids (like nitric acid), and sulfur compounds in moist environments. It is also not recommended for prolonged use in saltwater or in direct contact with dissimilar metals like aluminum or zinc without proper insulation due to galvanic corrosion. Kaxite Sealing provides comprehensive chemical compatibility charts upon request.
Q: Does Kaxite Sealing offer any specialty coatings or platings on copper gaskets?
A: Absolutely. We offer several surface treatments to enhance performance. Common options include:
The performance of a copper gasket is not just about the material; it's about precision engineering, consistent quality control, and deep application knowledge. Kaxite Sealing distinguishes itself through a rigorous manufacturing process that includes:
Whether you require a standard ASME B16.21 ring gasket or a complex custom seal for a prototype aerospace component, Kaxite Sealing has the expertise to deliver. Our engineers work directly with clients to analyze application stresses, temperature cycles, and media compatibility to ensure the copper gasket specified will perform reliably throughout its intended service life.
