In industrial maintenance, pipeline integrity, and manufacturing, the quality of your sealing tools directly impacts project success, safety, and operational longevity. Kaxite Sealing, with decades of engineering excellence, provides a comprehensive range of professional-grade sealing tools designed for precision, durability, and maximum efficiency. Our tools are engineered to meet the rigorous demands of various industries, from oil and gas and chemical processing to HVAC, plumbing, and general fabrication. Whether you are sealing a high-pressure flange, installing a gasket on a complex assembly, or performing routine maintenance, using the correct tool is paramount. This guide delves into the critical parameters, specifications, and application knowledge of our product line, empowering professionals to make informed decisions for their sealing tasks.
Kaxite Sealing's product portfolio is systematically categorized based on application mechanics and industry standards. Understanding these categories and their precise specifications ensures optimal tool selection.
Critical for achieving accurate bolt preload and ensuring uniform gasket compression on flanged connections.
| Model Series | Torque Range (Nm) | Drive Size (inch) | Accuracy | Material (Head/Handle) | Primary Application |
|---|---|---|---|---|---|
| KTW-Click250 | 28 - 250 Nm | 1/2" | ±4% | Chromium Vanadium Steel / TRP Handle | General flange work, automotive, machinery |
| KTW-Digi1000 | 100 - 1000 Nm | 3/4" | ±2% | Alloy Steel / Aluminum Body | Critical bolting in energy, construction |
| KHT-SuperDrive | 1,000 - 10,000 Nm | 1" (Square Drive) | ±3% | High-Tensile Steel | Large diameter bolts on turbines, reactors, pipelines |

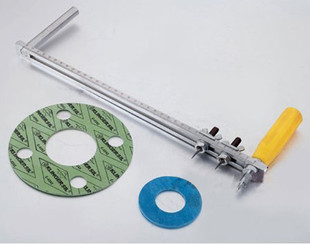

For creating precise, on-site gaskets from sheet materials like rubber, graphite, PTFE, and non-asbestos fibers.
| Model Series | Cutting Capacity (Material Thickness) | Max. Cutting Diameter | Cutter Material | Handle Type | Compatible Materials |
|---|---|---|---|---|---|
| KGC-ProCompass | Up to 3.0 mm | 600 mm | High-Carbon Steel Blade, Tungsten Carbide Tip | Ergonomic Anti-Slip Grip | Rubber, Compressed Fiber, PTFE |
| KHP-MultiPunch | Up to 2.5 mm | 25 mm (Hole Dia.) | Tool Steel, Heat-Treated | Knurled Handle for Grip | Soft Metals, Polymers, Gasket Sheets |
Essential for preparing flange surfaces and aligning pipe flanges before sealing to prevent leaks.
Choosing the right sealing tool involves analyzing several technical parameters beyond the basic type.
Q: How often should I recalibrate my Kaxite Sealing torque wrench?
A: Calibration frequency depends on usage intensity, industry standards, and manufacturer recommendations. For general industrial use, we recommend annual recalibration. For critical, high-usage, or safety-intensive applications (e.g., aerospace, pressure systems), calibration every 3 to 6 months or after 5,000 cycles is advised. Always recalibrate if the tool is dropped, experiences an overload, or shows inconsistent results. Kaxite Sealing offers global calibration services traceable to national standards.
Q: Can your gasket cutters handle spiral-wound gasket filler material?
A: Our standard KGC-ProCompass cutters are optimized for homogeneous sheet materials. Cutting spiral-wound gasket filler (like graphite or PTFE tape) can cause fraying. For such applications, we recommend our specialized KGC-SpiralShear model, which uses a scissor-action blade to cleanly shear the fibrous or layered material without pulling or tearing.
Q: What is the proper bolt tightening sequence when using your tools on a flange?
A: Always follow a cross-pattern or star-pattern tightening sequence. After hand-tightening all nuts, use a Kaxite Sealing torque wrench in multiple passes (e.g., 30%, 60%, 100% of final torque). This method ensures even gasket compression and minimizes flange distortion, which is a primary cause of leaks. Refer to ASME PCC-1 or EN 1591 standards for detailed procedures based on flange size and pressure class.
Q: Are Kaxite Sealing tools compatible with all international bolt standards?
A: Yes. Our tools are designed for global use. Drive sizes (1/4", 3/8", 1/2", 3/4", 1") conform to ANSI/SAE standards, which are compatible with ISO and DIN socket sets. Our hydraulic wrench square drives are to ISO 1174. Always ensure your socket or accessory has the correct drive size and is rated for the torque being applied.
Q: How do I maintain my sealing tools to ensure long service life?
A: Proper maintenance is crucial. For torque wrenches: after use, always dial down the setting to the lowest value (do not store under tension), keep clean and dry, and lightly oil metal surfaces periodically. For cutters: clean blades after each use, especially when cutting adhesive or graphite materials, and apply a light corrosion inhibitor. Store all tools in their protective cases provided by Kaxite Sealing. Avoid using tools for purposes other than their intended design (e.g., do not use a torque wrench as a breaker bar).
Q: Do you offer tools for confined or hazardous space sealing work?
A: Absolutely. Kaxite Sealing has a dedicated line of low-profile, reaction-arm hydraulic torque wrenches and compact ratcheting flange spreaders for tight spaces. For hazardous areas (ATEX Zone 1/2), we provide tools with intrinsically safe digital gauges or fully mechanical designs, and non-sparking tool kits certified to DIN ISO 22525. Contact our engineering support for a site-specific tooling solution.
Matching the tool to the specific sealing challenge is key. Here are common scenarios:
