Rubber Sheet

Your Comprehensive Guide to Rubber Sheet Materials

In industrial and commercial applications, the reliability of a sealing or protective solution often hinges on the material at its core. The humble Rubber Sheet is a foundational component across countless sectors, from heavy machinery and automotive manufacturing to food processing and construction. Selecting the correct rubber sheet is not a mere purchasing decision; it's a critical engineering choice that impacts safety, efficiency, and long-term operational costs. As experts at Kaxite Sealing, with decades of material science and application engineering experience, we understand that navigating the vast landscape of rubber compounds, specifications, and performance metrics can be daunting. This guide is designed to demystify rubber sheet products, providing you with the detailed technical parameters and practical knowledge needed to make an informed selection for your specific requirements.

Key Performance Parameters of Rubber Sheets

Understanding the technical specifications of a rubber sheet is paramount. These parameters define its behavior under stress, environmental exposure, and over time. Below is a detailed breakdown of the critical characteristics you must evaluate.

1. Material Compound & Standards

The base polymer determines the fundamental properties. Common types include:

• Nitrile Rubber (NBR): Excellent resistance to oils, fuels, and hydrocarbons. Ideal for automotive and fuel handling applications.
• Neoprene (CR): Good all-purpose resistance to weathering, ozone, moderate oils, and flames. Commonly used in outdoor gaskets and industrial settings.
• EPDM (Ethylene Propylene Diene Monomer): Superior resistance to weathering, ozone, steam, and hot water. Poor resistance to petroleum oils. Perfect for HVAC, automotive cooling systems, and outdoor seals.
• Silicone (VMQ): Exceptional stability across a wide temperature range (-60°C to 225°C), excellent electrical insulation, and high flexibility. Used in food-grade, medical, and high-temperature environments.
• Fluoroelastomer (FKM/Viton®): Outstanding resistance to high temperatures, fuels, oils, and aggressive chemicals. Essential for aerospace, chemical processing, and high-performance automotive seals.
• Natural Rubber (NR): High tensile strength, elasticity, and abrasion resistance. Suitable for applications requiring high mechanical strength but not oil or ozone resistance.

Kaxite Sealing sheets are manufactured to rigorous international standards such as ASTM, ISO, DIN, and SAE, ensuring consistent quality and performance.

2. Physical & Mechanical Properties

These are typically measured via standardized test methods (e.g., ASTM D2000, ISO 1629).

3. Environmental & Chemical Resistance

This is arguably the most critical selection criterion. A sheet must withstand the specific fluids, temperatures, and elements it will encounter.

Kaxite Sealing provides detailed chemical compatibility charts for each of our rubber sheet compounds, allowing for precise material selection against hundreds of specific media.

Standard Product Specifications & Availability

Kaxite Sealing offers a comprehensive range of rubber sheet products in various forms to suit fabrication needs.

Note: Custom sizes, thicknesses, die-cutting, and fabrication services are available from Kaxite Sealing to meet exact project specifications.

Rubber Sheet FAQ: Expert Answers from Kaxite Sealing

Q: How do I choose the right rubber sheet material for my application?

A: Selection is a three-step process. First, identify the primary environmental exposure: What fluids (oil, water, chemicals), temperature range, and outdoor conditions will it face? Second, define the mechanical requirements: Is it a static gasket, a dynamic seal, or a protective pad? Consider needed hardness, pressure, and potential for movement. Third, consider any regulatory needs like FDA, UL, or NSF certification. Cross-reference these needs with material property charts. When in doubt, consult with Kaxite Sealing's technical team; we can provide samples and guidance based on your specific operating parameters.

Q: What is the difference between a molded sheet and a calendered sheet?

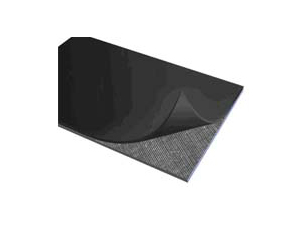

A: This refers to the manufacturing process, which affects consistency and properties. Calendered sheets are produced by passing the rubber compound through heavy rollers, resulting in a smooth, uniform sheet. It's efficient for high-volume production. Molded sheets are cured in a press under heat and pressure, often between metal plates. This process can yield sheets with tighter dimensional tolerances, more consistent density throughout the thickness, and can incorporate fabric reinforcement more easily. Kaxite Sealing utilizes both methods, choosing the optimal process based on the compound and the required performance characteristics of the final sheet.

Q: Can rubber sheets be joined or spliced effectively?

A: Yes, with the correct technique. For permanent, high-strength bonds, vulcanization is the preferred method. This uses heat and pressure to chemically bond the edges, creating a seam nearly as strong as the parent material. For field repairs or simpler applications, high-quality rubber contact cements (solvent-based or water-based) can be used. The key is proper surface preparation—cleaning and abrading the surfaces to be joined—and applying adhesive as directed. Kaxite Sealing can provide pre-fabricated sheets in large sizes or offer bonding services to minimize seams in critical applications.

Q: How does temperature affect the performance of a rubber sheet?

A: Temperature profoundly impacts all rubber properties. As temperature increases, rubber typically becomes softer, loses tensile strength, and may experience a higher compression set. At low temperatures, rubber hardens and loses elasticity, which can lead to seal failure if it cannot conform to the flange. Each compound has a defined service temperature range. For example, standard NBR is functional from -40°C to +100°C, while Silicone can handle -60°C to +225°C. Continuous exposure at the extremes of the range will accelerate aging. Always select a material whose rated range exceeds your application's maximum and minimum temperatures with a safety margin.

Q: What are the signs of rubber sheet degradation or failure?

A: Common signs include: Hardening or Cracking: Often caused by heat aging, oxidation, or ozone attack. Swelling or Softening: Typically indicates chemical incompatibility—the sheet is absorbing fluid and losing its structural integrity. Compression Set: The sheet does not return to its original thickness after compression, leading to loss of sealing force. Tearing or Nibbling: Can be due to excessive pressure, misalignment, or insufficient tear strength for the application. Color Change or Blooming: May indicate chemical reaction or the migration of additives to the surface. Regular inspection for these signs is part of a good preventative maintenance program.

Q: Does Kaxite Sealing offer custom-compounded rubber sheets?

A: Absolutely. While our standard range covers over 90% of industrial needs, we specialize in developing custom compounds for unique challenges. This includes adjusting hardness, color, adding anti-static or conductive properties, enhancing flame retardancy (UL 94, ASTM E84), improving low-temperature flexibility, or optimizing resistance to a specific, aggressive chemical cocktail. Our R&D team works directly with clients to formulate, prototype, and test sheets that meet exacting specifications not fulfilled by off-the-shelf materials.

Application Engineering & Best Practices

Selecting the right sheet is only the first step. Proper handling, fabrication, and installation are crucial for optimal performance and longevity.

• Storage: Store sheets in a cool, dry, dark place away from direct sunlight, ozone sources (like electric motors), and extreme temperatures. Keep them flat or on a large diameter core to prevent permanent curl or creasing.
• Fabrication: Use sharp, clean cutting tools. For die-cutting, ensure proper blade clearance and anvil condition. When punching, regular tool maintenance prevents ragged edges that can initiate tears.
• Surface Preparation: For gasketing, ensure both flange surfaces are clean, dry, and free of old gasket material, oil, and debris. A proper surface finish (neither too rough nor too smooth) is essential for an effective seal.
• Bolt Loading: Follow a cross-pattern torque sequence and achieve the recommended bolt load. Under-torquing leads to leaks; over-torquing can cause excessive compression set or even damage the flange, especially with softer rubber sheets.
• Inspection Intervals: Establish regular inspection schedules for critical seals based on the severity of the service conditions, checking for the signs of degradation mentioned in the FAQ.
