Flange Insulation Gasket Kits

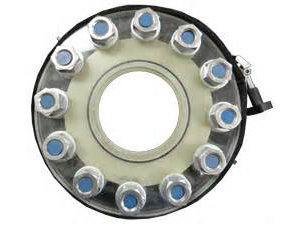

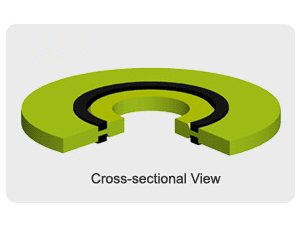

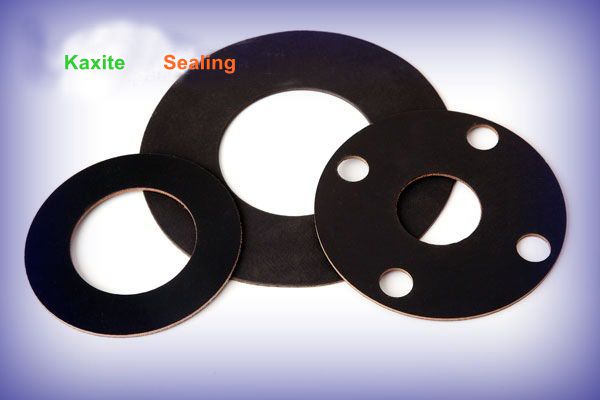

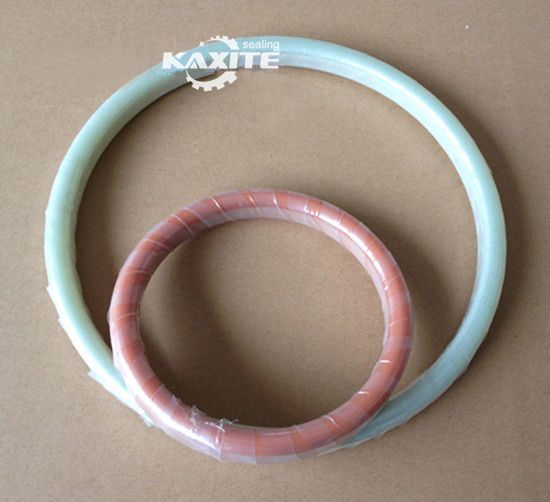

Flange Insulation Gasket Kits are critical engineered components designed to prevent galvanic corrosion and ensure electrical isolation in bolted flange connections, primarily within piping systems. These kits are essential in industries where stray electrical currents, cathodic protection systems, or dissimilar metals in contact could lead to rapid material degradation, safety hazards, and costly unplanned downtime. At Kaxite Sealing, we specialize in manufacturing high-performance insulation solutions that meet the rigorous demands of oil & gas, chemical processing, water treatment, and power generation applications. A complete flange insulation gasket kit typically contains all necessary components to fully isolate a flanged joint. The core philosophy is to break the electrical continuity between the two flanges, the bolts, and the piping itself. A standard kit from Kaxite Sealing includes: * **Central Insulating Gasket:** The primary barrier, placed between the two flange faces. * **Insulating Sleeves (Bushings):** Fit around the studs or bolts to prevent them from making electrical contact with the flange holes. * **Insulating Washers:** Placed under the bolt head and the nut to isolate the fasteners from the flange. * **Steel Washers:** Used in conjunction with insulating washers to distribute load and prevent crushing of the insulating material. * **All Necessary Hardware:** Often includes nuts and sometimes studs, all specified for the assembly. ### Detailed Product Parameters & Specifications by Kaxite Sealing Kaxite Sealing kits are designed with material science and practical application at their core. Our product parameters are defined to ensure reliability, ease of installation, and long-term performance. **1. Material Composition & Properties** The selection of insulating materials is paramount. We use advanced polymers and composites known for their dielectric strength, creep resistance, and chemical stability. * **Gasket & Washer Materials:** * **Epoxy Glass (G10/FR4):** A standard choice offering excellent electrical insulation, high mechanical strength, and good resistance to most chemicals and solvents. Suitable for a wide temperature range. * **PTFE (Teflon®):** Used for superior chemical resistance, especially in highly corrosive services. It has a lower mechanical strength but outstanding dielectric properties. * **Phenolic Laminates:** Provide good electrical and mechanical properties with better fluid resistance than standard epoxy in some applications. * **Modified Elastomers (for specific gasket types):** Sometimes combined with insulating layers for sealing in less demanding isolation scenarios. * **Sleeve (Bushing) Materials:** * **PTFE Sleeves:** Most common due to their low friction, excellent chemical inertness, and ease of installation over bolts. * **Polypropylene Sleeves:** A cost-effective alternative for certain services with good dielectric properties. **2. Key Performance Specifications** Our kits are engineered to meet or exceed industry standards such as ASTM, ISO, and customer-specific specifications. | Parameter | Specification Range (Kaxite Sealing Standard) | Test Standard / Notes | | :--- | :--- | :--- | | **Dielectric Strength** | 4 kV/mm to 15 kV/mm (depending on material) | ASTM D149 | | **Volume Resistivity** | >10¹² ohm·cm | ASTM D257 | | **Compressive Strength** | 150 MPa to 300 MPa (Epoxy Glass) | ASTM D695 | | **Continuous Service Temperature** | -50°C to +150°C (Epoxy Glass) -200°C to +260°C (PTFE) | Material dependent | | **Chemical Resistance** | Excellent to broad range of acids, alkalis, solvents (especially PTFE) | ASTM D543 | | **Flange Pressure Rating** | Class 150, 300, 600, 900, 1500, 2500 | Matches insulated flange rating | | **Flange Types** | Weld Neck, Slip-On, Blind, Lap Joint, Orifice | All standard ASME B16.5 & B16.47 | **3. Dimensional Standards & Customization** Every Kaxite Sealing kit is precisely manufactured to match the flange dimensions. * **Standard Kits:** Built to ASME B16.5 and B16.47 dimensions for corresponding flange class, size, and facing (RF, FF, RTJ). * **Gasket ID/OD:** Matches the flange bore and bolt circle precisely. * **Sleeve Dimensions:** Inner diameter fits the bolt/stud diameter with minimal clearance; outer diameter fits the flange bolt hole. * **Washer Dimensions:** Align with bolt size and provide sufficient bearing surface. * **Custom Kits:** We routinely manufacture kits for non-standard flanges, special alloys, high-temperature applications, and OEM equipment. ### Kaxite Sealing Flange Insulation Gasket Kits: Frequently Asked Questions (FAQ) **Q: When is a flange insulation gasket kit required?** A: A kit is mandatory in situations where electrochemical corrosion must be prevented. This includes connections between dissimilar metals (e.g., carbon steel to stainless steel), pipelines with applied cathodic protection where isolation of protected sections is needed, and systems prone to stray electrical currents from welding, railways, or other sources. They are also used for safety in hazardous areas to prevent sparking. **Q: Can I just use an insulating gasket without the sleeves and washers?** A: No, this is a common and critical mistake. Using only the gasket fails to complete the isolation circuit. The bolts, which are typically conductive, will create a bridge between the two flanges, rendering the insulation ineffective. A full kit with sleeves and washers is essential to break all metallic contact points. **Q: How do I select the right material for my application?** A: Material selection depends on service conditions. For general-purpose, high-strength needs, Epoxy Glass (G10) is the default choice. For aggressive chemical services, PTFE is recommended. Temperature is another key factor; PTFE handles a wider range. Always consider the fluid media, operating temperature, pressure, and any cleaning procedures. Kaxite Sealing engineers can assist in this selection. **Q: What is the proper installation procedure for these kits?** A: Correct installation is crucial. First, ensure flange faces are clean, aligned, and undamaged. Insert PTFE sleeves into each flange bolt hole. Place the insulating gasket between the flange faces. For each bolt, assemble in this order from bottom to top: insulating washer, steel washer, nut (on the insulated side—consult standards for which side is typically grounded). Tighten bolts in a star-pattern sequence to the specified torque to ensure even gasket compression and avoid breaking the brittle insulating components. **Q: How do I test if the installed insulation is working?** A: Insulation resistance should be verified post-installation. Using a low-resistance ohmmeter or megohmmeter, measure the resistance between the two flanges and between each flange and its bolts. The reading should be very high (typically >1 MΩ, often much higher). A low reading indicates a short, likely from a missing sleeve/washer, damaged component, or conductive debris. **Q: Are Kaxite Sealing kits reusable?** A: Generally, flange insulation kits are considered one-time-use, especially the gasket and insulating washers, which compress during torquing. Reusing them can compromise the seal and the insulation integrity. PTFE sleeves may sometimes be reused if undamaged, but inspection is vital. We recommend using a new kit for any flange re-opening to ensure reliability. **Q: Can these kits handle high pressure and temperature?** A: Absolutely. Kaxite Sealing kits are rated for the full pressure class of the flange they are designed for (e.g., Class 300, 600). The insulating materials, particularly epoxy glass, have high compressive strength. The temperature limit is defined by the gasket and insulating material chosen. Our PTFE-based kits are suitable for cryogenic to high-temperature processes, while epoxy glass covers most intermediate ranges. **Q: Does Kaxite Sealing offer kits for RTJ (Ring Type Joint) flanges?** A: Yes, we manufacture complete insulation kits for RTJ flanges. These include insulated sealing rings (often a metal ring with insulating inserts or coatings) along with the full complement of sleeves and washers. The design ensures both a pressure-tight seal and full electrical isolation. **Q: How do I order the correct kit for my flanges?** A: To specify a kit, you need the flange standard (ASME, DIN, etc.), nominal pipe size (NPS), pressure class (e.g., 150#), flange facing type (RF, RTJ), bolt size and quantity, and material specification. Providing a flange drawing or equipment tag number is the most reliable method. Kaxite Sealing can then supply a precisely configured kit.
