In the demanding world of industrial sealing, where performance under extreme pressure and temperature is non-negotiable, Expanded graphite gaskets have emerged as a cornerstone solution. Known for their exceptional sealing integrity, thermal stability, and chemical resistance, these gaskets are engineered to provide a reliable, long-lasting seal in the most challenging environments. At Kaxite Sealing, we specialize in manufacturing premium expanded graphite gaskets that meet and exceed the rigorous standards of industries worldwide. Our commitment to precision engineering and material excellence ensures that every gasket delivers optimal performance, minimizing downtime and maximizing safety.
What Are Expanded Graphite Gaskets?
Expanded graphite gaskets are manufactured from exfoliated or expanded graphite flakes. This process involves treating natural graphite with acid and heat, causing it to expand into a low-density, vermiform (worm-like) structure. This material is then compressed into sheets or tapes without the use of binders. The resulting product is a pure graphite sheet that is highly flexible, compressible, and impervious to most chemicals and extreme temperatures. Unlike traditional gasket materials, expanded graphite maintains its sealing properties across a vast range of conditions, making it a versatile and superior choice for critical applications.
Key Features & Advantages of Kaxite Sealing Expanded Graphite Gaskets
- Exceptional Temperature Resistance: Capable of continuous operation from cryogenic temperatures as low as -240°C (-400°F) up to oxidizing atmospheres of 450°C (842°F) and in non-oxidizing atmospheres up to 3000°C (5432°F) in inert environments.
- Superior Chemical Resistance: Inert to most chemicals, acids, solvents, and alkalis, providing reliable sealing in aggressive chemical processing.
- Excellent Creep Relaxation Resistance: Maintains bolt load over time, ensuring a stable, leak-free seal throughout the maintenance cycle.
- High Compressibility and Recovery: Conforms easily to uneven flange surfaces and recovers from compression, sealing micro-imperfections effectively.
- Thermal & Electrical Conductivity: Offers excellent thermal conductivity for heat exchanger applications and provides electrical grounding between flanges.
- No Binder Degradation: Being a binder-free material, it eliminates the risk of failure due to binder burnout at high temperatures.
- Easy to Handle and Install: Can be easily cut, punched, or molded on-site to fit any flange shape or size.
Detailed Product Specifications & Parameters
Kaxite Sealing expanded graphite gaskets are available in multiple forms—sheets, tapes, corrugated, and reinforced laminates—to suit specific application requirements. Below are the detailed technical specifications for our standard expanded graphite sheet, the core material for most gaskets.
| Property / Parameter | Standard Value (ASTM / DIN Test Methods) | Remarks / Application Note |
|---|---|---|
| Density | 1.0 - 1.1 g/cm³ (typical) | Custom densities available for specific load requirements. |
| Temperature Range (Continuous, in Air) | -240°C to 450°C (-400°F to 842°F) | In inert/reducing atmospheres, usable up to 3000°C. |
| Compression (at 70 MPa) | 40 - 50% | High compressibility ensures excellent flange conformity. |
| Recovery | > 15% | Good recovery helps maintain seal under thermal cycling. |
| Creep Relaxation (24h at 300°C) | < 15% | Low creep maintains bolt load, preventing leakage. |
| Tensile Strength | ≥ 4.5 MPa (Machine Direction) | Adequate strength for handling and installation. |
| Thermal Conductivity | 5 - 150 W/m·K (in-plane) | Highly dependent on density and orientation. |
| pH Value | 5 - 7 (Neutral) | Non-corrosive to flange materials. |
| Chemical Compatibility | Resistant to most media except strong oxidizing acids | Consult Kaxite for specific chemical service. |
| Available Thickness | 0.5mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm | Stocked for quick delivery; custom thickness on request. |
| Standard Sheet Size | 1260 mm x 1260 mm / Custom sizes available | Minimizes waste for large flange cuts. |
Reinforced & Composite Expanded Graphrite Gasket Styles
For applications requiring enhanced mechanical strength, blow-out resistance, or handling ease, Kaxite Sealing offers laminated and reinforced versions.
| Product Style | Construction | Key Benefits | Typical Applications |
|---|---|---|---|

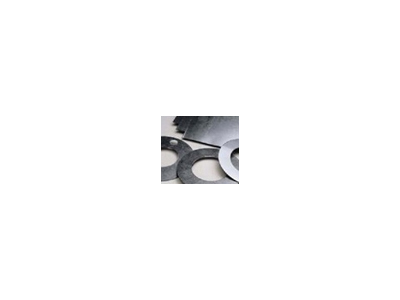

| EG Sheet (Pure) | 100% Expanded Graphite | Maximum flexibility, best thermal/chemical resistance. | Heat exchangers, boiler manways, valve bonnets. |

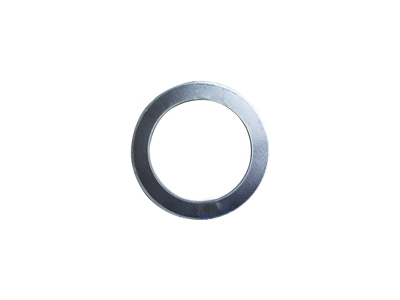

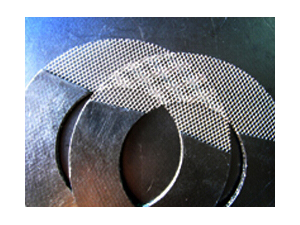

| EG with SS316 Tanged Insert | EG sheet mechanically bonded to a perforated SS316 core. | High mechanical strength, excellent blow-out resistance. | High-pressure pipe flanges (ASME B16.5), pump casings. |

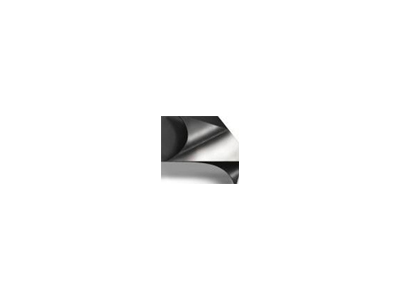

| EG Laminate with SS304/316 Foil | EG sheet laminated on one or both sides with thin metal foil. | Improved handling, surface protection, no graphite stickiness. | Food & Pharma, applications requiring clean separation. |
| Corrugated EG with Metal Core | Corrugated metal core (SS/CS) clad with EG. | Very high seating stress, superior performance in cyclic service. | Turbine casings, high-pressure steam lines, reactor flanges. |
| EG Spiral Wound Gasket Filler | EG used as the filler material in spiral wound gaskets. | Combines resilience of EG with strength of spiral wound design. | High temp/pressure refinery and petrochemical flanges. |
Industries and Applications
Kaxite Sealing expanded graphite gaskets are trusted in a multitude of critical industries:
- Oil, Gas & Petrochemical: Refinery flanges, heat exchangers, reactors, column manways, valve gaskets.
- Power Generation: Steam turbine casings, boiler manways and doors, high-temperature pipe flanges.
- Chemical & Pharmaceutical: Agitator flanges, reactor lids, piping for aggressive chemical media.
- Pulp & Paper: Digester outlets, heat recovery systems, chemical liquor lines.
- Food & Beverage: Sterilizer doors, hot oil and steam lines in processing equipment.
- Automotive & Aerospace: Exhaust gaskets, fuel cell components, high-temperature test rigs.
Frequently Asked Questions (FAQ) About Expanded Graphite Gaskets
Q: Can expanded graphite gaskets be used for steam service?
A: Yes, expanded graphite gaskets are an excellent choice for saturated and superheated steam service. Their high-temperature resistance and low creep relaxation make them ideal for steam flanges, turbine casings, and boiler applications. For optimal performance in steam, ensure the gasket is properly specified for the temperature and pressure, and follow correct installation procedures with adequate bolt load.
Q: How do I choose between a pure expanded graphite sheet and a reinforced style?
A: The choice depends on flange conditions and application. Use pure expanded graphite sheets for standard flanges with good surface finish, low bolt load limitations, and where maximum chemical/thermal resistance is needed. Choose a reinforced style (like tanged metal or corrugated metal core) for high-pressure applications, large diameter flanges, flanges with poor surface condition, or where significant blow-out resistance is required. Kaxite Sealing engineers can assist in this selection.
Q: Are expanded graphite gaskets electrically conductive?
A: Yes, expanded graphite is an excellent conductor of electricity. This property is beneficial as it provides a grounding path across flanged connections, preventing static electricity buildup, which is a critical safety feature in flammable service. This is a key advantage over non-conductive gasket materials like PTFE or fiber.
Q: What is the major limitation of expanded graphite as a gasket material?
A: The primary limitation is its vulnerability to strong oxidizing agents at high temperatures. In the presence of concentrated oxidizing acids (like nitric or sulfuric above certain concentrations) or highly oxygenated atmospheres at elevated temperatures, graphite can oxidize and degrade. For such services, alternative materials like PTFE or specialty alloys should be considered. Always consult chemical compatibility charts.
Q: How should I store and handle Kaxite expanded graphite gaskets?
A: Store sheets or pre-cut gaskets in a cool, dry place away from direct sunlight and moisture. Keep them in their original packaging until ready for use. Handle with care to avoid bending or creasing pure sheets. For laminated versions with foil, handling is easier. Always wear clean gloves to prevent contamination from oils or dirt on your hands, which could affect performance.
Q: Can I reuse an expanded graphite gasket after disassembly?
A: It is strongly discouraged to reuse expanded graphite gaskets. During initial installation, the material compresses and conforms to the specific flange surface imperfections. Upon disassembly, this compressed state is permanently set, and its recovery is not sufficient to guarantee a leak-free seal upon re-tightening. Reuse significantly increases the risk of leakage. Always install a new gasket for a reliable seal.
Q: Why should I choose Kaxite Sealing for my expanded graphite gasket needs?
A: Kaxite Sealing combines decades of sealing expertise with stringent quality control. Our expanded graphite is sourced from high-purity raw materials and processed under controlled conditions to ensure consistent density, flexibility, and performance. We offer not just standard products but also comprehensive technical support, custom fabrication, and material selection guidance tailored to your specific operating conditions, ensuring safety, reliability, and cost-effectiveness.
Installation Guidelines for Optimal Performance
Proper installation is crucial to achieving the full performance potential of any expanded graphite gasket.
- Flange Preparation: Clean both flange surfaces thoroughly. Remove all old gasket material, rust, scale, and debris. Ensure surfaces are smooth, undamaged, and within flatness and finish tolerances (typically 125-250 µ-in Ra).
- Gasket Selection & Inspection: Select the correct gasket style, size, and thickness. Inspect the new gasket for any damage, folds, or irregularities before installation.
- Alignment & Placement: Center the gasket carefully on the flange. For large diameters, use alignment pins or bolts to prevent slippage during assembly. Do not use adhesives.
- Bolt Tightening: Use the correct bolt material and lubricant. Follow a cross-pattern tightening sequence (star pattern) in multiple stages (e.g., 30%, 60%, 100% of final torque) to ensure even compression across the flange. Always refer to the equipment manufacturer's or relevant standard's (like ASME PCC-1) recommended bolt torque values.
- Re-torquing: For critical high-temperature services, a hot re-torque after the initial heat cycle is often recommended to compensate for any initial relaxation and thermal expansion effects.
