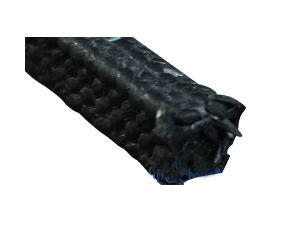

Carbon fiber packing is a high-performance sealing solution engineered for demanding industrial applications. It is manufactured from pure or reinforced carbon filaments, offering exceptional resilience under extreme temperatures and pressures. Unlike traditional packing materials, carbon fiber packing maintains its structural integrity and sealing force in environments where other materials would degrade, making it the go-to choice for critical service in industries such as chemical processing, oil & gas, power generation, and aerospace. Its unique combination of low friction, high thermal conductivity, and chemical inertness ensures long service life and reduced maintenance costs for rotating and reciprocating equipment.
Choosing Kaxite Sealing's carbon fiber packing provides a tangible return on investment through superior performance and reliability. Our advanced manufacturing processes ensure a consistent, high-density braid that maximizes sealing efficiency. The primary advantages include:
Kaxite Sealing offers a range of carbon fiber packing styles to meet specific application requirements. Below are the detailed specifications for our flagship products.
| Parameter | KX-CF1 (Standard) | KX-CF2 (PTFE Enhanced) | KX-CF3 (Graphite/Carbon Hybrid) |
|---|---|---|---|
| Primary Composition | Pure Carbon Fiber | Carbon Fiber + PTFE | Carbon Fiber + Expanded Graphite |
| Max Temp (Oxidizing) | 600°F (316°C) | 500°F (260°C) | 750°F (399°C) |
| Thermal Conductivity | Very High | Moderate | Extremely High |
| Chemical Resistance | Excellent | Superb (Broadest range) | Excellent (except strong oxidizers) |
| Friction Coefficient | Low | Very Low | Low |
| Best For | High-speed pumps, boiler feed pumps, hot oil | Chemical pumps, food processing, aggressive acids/alkalis | High-temperature valves, steam applications, heat transfer fluids |
Q: How does carbon fiber packing compare to traditional graphite packing?
A: While both offer high-temperature capability, carbon fiber packing has distinct advantages. It possesses higher tensile strength and structural integrity, making it more resilient to extrusion in high-pressure services. Carbon fiber also has a lower coefficient of friction than many graphite styles, leading to cooler running and less shaft wear. Graphite packing can be more susceptible to erosion in high-velocity fluid services, whereas carbon fiber's braided construction offers better resistance.
Q: Can Kaxite Sealing carbon fiber packing be used in potable water applications?
A: Yes, specifically our KX-CF2 grade with PTFE impregnation is NSF/ANSI 61 certified for use in systems involving potable water. The materials are non-toxic and will not leach harmful substances, ensuring water purity and compliance with health standards.
Q: What is the proper installation procedure for carbon fiber packing rings?
A: Correct installation is critical. Always start with a clean, smooth shaft and housing. Rings should be staggered so joints are offset by at least 90 degrees. Use a tamping tool to seat each ring firmly and evenly. For pumps, tighten the gland follower hand-tight only, then start the equipment. Allow a brief run-in period (15-30 minutes) and then tighten the gland incrementally—typically 1/6th of a turn at a time—until a slight leakage for cooling is observed (usually 1-2 drops per minute). Avoid over-tightening, as this generates excessive heat.
Q: How do I select the right size and style for my pump or valve?
A: Selection depends on shaft/stem diameter, box depth, operating conditions (pressure, temperature, speed, and fluid media). Measure the shaft diameter and the packing chamber depth and width precisely. Kaxite Sealing provides packing in standard square cross-sections (1/4", 3/8", 1/2", 5/8", etc.) and can manufacture custom sizes. For high-speed rotating equipment, our interlocked braid KX-CF1 is often recommended for superior stability. For reciprocating valves or aggressive chemicals, the flexible square braid KX-CF2 may be optimal. Consult our engineering datasheets or contact our technical support team for specific recommendations.
Q: What are the signs that my carbon fiber packing needs replacement?
A> Common indicators include a persistent increase in leakage beyond the controllable drip rate, excessive heat generation at the gland area, a noticeable increase in power consumption or shaft drag, and visible physical damage to the packing rings such as fraying, hardening, or excessive wear. Regular maintenance checks should monitor these parameters.
Q: Is carbon fiber packing suitable for abrasive slurry services?
A> Standard carbon fiber packing is not typically recommended for highly abrasive slurries, as the hard particles can accelerate wear on both the packing and the shaft. For such services, Kaxite Sealing offers specially designed composite packings that incorporate abrasion-resistant materials. However, for mildly abrasive applications, our reinforced KX-CF1 with Inconel wire can provide improved service life.
Q: Does Kaxite Sealing provide custom die-formed rings or spiral-wound gaskets from carbon fiber?
A> Yes. Beyond standard braided packing, Kaxite Sealing utilizes advanced molding and winding technologies to produce custom die-formed packing sets for specific equipment profiles and high-performance spiral wound gaskets with carbon fiber filler. These products offer precise dimensions and consistent density for complex flange connections and specialized machinery.
The robustness of carbon fiber packing makes it indispensable across a wide spectrum of industries. Key application areas include:
