In the demanding world of industrial insulation and high-temperature sealing, one material consistently stands out for its exceptional thermal properties and versatility: ceramic fiber. At Kaxite Sealing, with over two decades of specialization in advanced sealing materials, we engineer premium-grade ceramic fiber products that set the benchmark for performance, reliability, and safety. Our materials are specifically designed to withstand the most extreme environments, from soaring temperatures in furnace linings to critical sealing applications in aerospace and power generation. This guide delves into the technical specifications, applications, and unique advantages of Kaxite Sealing's ceramic fiber, providing the detailed information engineers, procurement specialists, and plant managers need to make informed decisions.
Kaxite Sealing's ceramic fiber is a synthetic material produced from high-purity alumina-silica blends, spun or blown into a flexible, wool-like consistency. The fundamental properties that define its performance are outlined below.
The following table provides a comparative overview of our primary ceramic fiber product forms and their core specifications. All data is based on ASTM or equivalent international testing standards.
| Product Form | Kaxite Grade Code | Max Service Temp (°C/°F) | Density Range (kg/m³) | Typical Applications | Key Features |
|---|---|---|---|---|---|

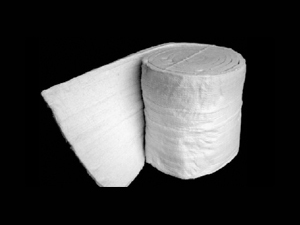

| Blanket / Felts | KF-BL-1260 / 1430 | 1260/2300 & 1430/2606 | 64 - 192 | Furnace linings, expansion joints, pipe wraps | Flexible, needled for integrity, easy to cut and install. |
| Modules / Folded Blocks | KF-MD-1430 | 1430/2606 | 190 - 220 | Hot face lining in reheat furnaces, forging furnaces | Pre-compressed, rapid installation, anchored system. |

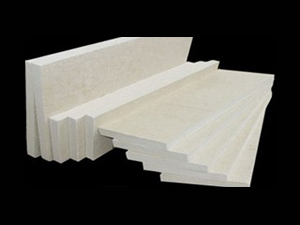

| Board / Rigidizer | KF-BR-1260 | 1260/2300 | 260 - 320 | Insulation boards, furnace doors, backing boards | High structural strength, machinable, flat surfaces. |

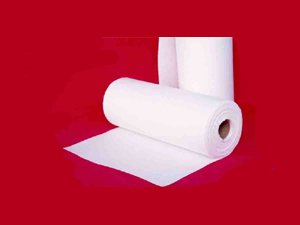

| Paper / Sheets | KF-PP-1260 | 1260/2300 | 180 - 220 | Gaskets, thin layer insulation, protective wrapping | Flexible, smooth surface, excellent handling strength. |

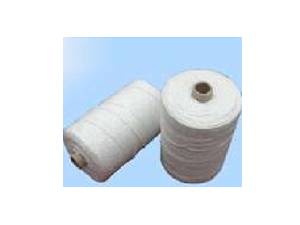

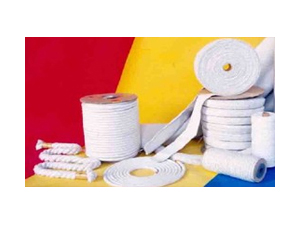

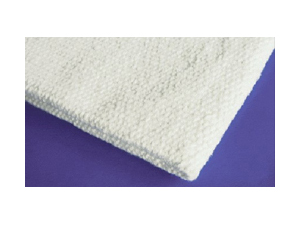

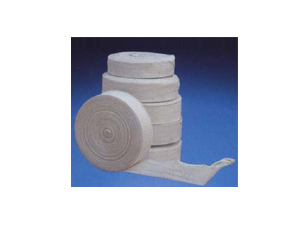

| Textiles (Cloth, Tape, Rope) | KF-TX-1260 | 1260/2300 | Varies by form | Fire curtains, welding protection, high-temp gasketing | Reinforced with fiberglass or Inconel wire for durability. |
| Cement / Mortar (Vermiculite-based) | KF-VM-1100 | 1100/2012 | ~1000 (wet) | Bonding blanket layers, patching, sealing joints | Air-setting, low shrinkage, excellent adhesion. |
Kaxite Sealing ceramic fiber is a critical component in countless industrial processes where thermal management is paramount. Its lightweight nature and superior insulating power make it a preferred replacement for traditional heavy refractory bricks.
Q: What is the primary health and safety consideration when handling ceramic fiber?
A: Fresh, unbonded ceramic fiber products are classified as a "possible irritant" due to the presence of respirable fibers. During installation, it is imperative to use appropriate personal protective equipment (PPE) including a NIOSH-approved dust mask (N95 or better), safety glasses, and gloves. Kaxite Sealing also offers "biodegradable" or "biosoluble" fiber grades. These fibers are engineered to dissolve rapidly in lung fluid, significantly reducing any potential bio-persistence concerns and enhancing long-term workplace safety.
Q: How does ceramic fiber compare to traditional refractory brick or castable?
A: Ceramic fiber offers distinct advantages: it is approximately 75% lighter than brick, leading to simpler support structures. It has a much lower thermal conductivity, providing better insulation with thinner linings. Crucially, its exceptional thermal shock resistance eliminates the cracking common in rigid refractories during cycling. This results in faster furnace cycling, up to 50% reduction in heat storage loss, and lower overall energy consumption. However, for applications with extreme mechanical abrasion or slag contact, a dense refractory may still be required as a hot face.
Q: What factors determine the choice between ceramic fiber blanket, module, and board?
A: The choice depends on the application's temperature, required surface durability, and installation method. Blankets are versatile for wrapping, lining curved surfaces, and creating expansion joints. Modules (folded and pre-compressed blocks) are designed for fast, anchored installation on furnace walls and roofs, providing a uniform, sturdy hot face. Boards are used where a rigid, flat, or machinable surface is needed, such as for furnace doors or as a backing layer. Kaxite Sealing engineers can provide specific selection guidance based on your thermal profile and mechanical requirements.
Q: Can ceramic fiber products get wet? How does moisture affect them?
A: While ceramic fibers themselves are not hydrating (they do not chemically react with water like some cements), exposure to liquid water or prolonged high humidity is not recommended. Moisture can reduce the insulation value temporarily until it evaporates, and in freezing conditions, trapped water can cause physical damage. Wet handling can also make the material friable. For outdoor applications or in damp environments, a weather-resistant cladding (metal jacketing with sealed joints) is essential to protect the insulation system. Our ceramic fiber boards often have better moisture resistance than blankets.
Q: What is the role of vermiculite in ceramic fiber systems, and when is it used?
A: Vermiculite is a naturally occurring, hydrous silicate mineral that expands when heated. In high-temperature insulation, vermiculite-based cement or mortar (like our KF-VM-1100) is used as a bonding and coating agent. Its key roles are: 1) To bond layers of ceramic fiber blanket together, creating a monolithic structure; 2) To provide a smooth, abrasion-resistant surface on fiber linings; 3) To seal joints between modules or boards, preventing heat leakage. It is typically used in areas below 1100°C where extreme refractoriness is not required but durability and surface integrity are important.
Q: How do I specify the correct density for my ceramic fiber application?
A: Density is a critical performance parameter. Higher density generally improves mechanical strength, resistance to erosion from high-velocity gases, and sometimes high-temperature shrinkage resistance. However, it also increases cost and slightly increases thermal conductivity (though still far superior to dense refractories). For example, a furnace hot face lining might use a 192 kg/m³ blanket for durability, while a backup layer might use a 96 kg/m³ blanket for optimal cost/performance. Kaxite Sealing provides detailed temperature vs. thermal conductivity and linear shrinkage graphs for each density to aid in precise engineering selection.
Selecting Kaxite Sealing means more than just purchasing a material; it's forming a partnership with a dedicated technical resource. Our commitment extends from raw material quality control—ensuring consistent fiber diameter and chemistry—to final product performance. We offer comprehensive technical support, including thermal modeling assistance for system design, installation best practices guidance, and custom fabrication of shapes, boards, and pre-formed components to reduce on-site labor and waste. Our product range is continuously developed to meet evolving industrial standards, including enhanced grades for improved durability and biosoluble options for advanced safety protocols. For engineers tasked with improving thermal efficiency, extending equipment life, and ensuring operational safety, Kaxite Sealing provides the reliable, high-performance ceramic fiber solutions that industry leaders depend on.
