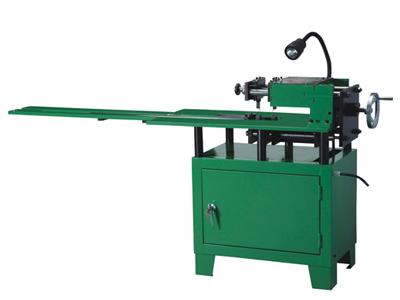

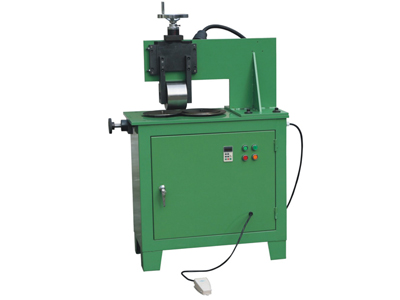

In the demanding world of industrial sealing, the quality of the gasket is intrinsically linked to the precision of the machine that produces it. Machines for graphite reinforced gaskets represent the pinnacle of specialized manufacturing equipment, engineered to transform raw materials like flexible graphite foil and metal inserts into reliable, high-performance sealing components. These gaskets are critical for containing extreme pressures and temperatures in applications ranging from chemical processing and power generation to oil & gas and aerospace. At Kaxite Sealing, we have dedicated decades to refining this technology, developing machinery that doesn't just meet industry standards but sets new benchmarks for accuracy, efficiency, and durability. Our systems are built on a foundation of deep material science understanding and practical engineering excellence, ensuring every gasket produced delivers uncompromising sealing integrity.
The manufacturing process for graphite reinforced gaskets, such as spiral wound gaskets, kammprofile gaskets, and sheet gasket stamping, requires a harmonious integration of force control, material handling, and precision tooling. A standard machine line must manage the delicate nature of graphite—preventing tearing or uneven compression—while simultaneously handling the robust metal winding or cutting process. This demands machines with exceptional control systems, robust structural frames, and adaptable configurations. Kaxite Sealing’s portfolio addresses these complex needs with modular, technologically advanced solutions. We provide not just equipment, but a comprehensive manufacturing ecosystem that includes automated feeding systems, programmable logic controllers (PLCs) with intuitive human-machine interfaces (HMIs), and real-time quality monitoring sensors. This holistic approach minimizes human error, maximizes throughput, and guarantees that every gasket, from the smallest flange to the largest vessel connection, is produced to exact specifications.
Selecting the right machine requires a detailed analysis of its technical capabilities. Below is a breakdown of the critical parameters that define a high-performance machine for graphite reinforced gasket production, as exemplified by Kaxite Sealing's engineering philosophy.
| Parameter | Specification Range | Impact on Gasket Production |
|---|---|---|
| Maximum Gasket OD (Spiral Wound) | 100 mm to 3000 mm | Determines the range of flange sizes the machine can accommodate for piping and vessel applications. |
| Winding Speed | 5 to 30 RPM (programmable) | Affects production cycle time. Precise speed control ensures consistent pitch and density of the wound gasket. |
| Positioning Accuracy (CNC Axis) | ± 0.05 mm | Critical for the precise start/stop points of winding and for accurate cutting/stamping, ensuring dimensional conformity to API 601/ASME B16.20 etc. |
| Graphite Foil Thickness Capability | 0.15 mm to 1.5 mm | Defines the variety of gasket density and compression grades that can be produced (e.g., standard density, high-density fills). |
| Metal Strip Thickness & Width | Thickness: 0.2 mm - 0.8 mm; Width: 3 mm - 10 mm | Dictates the gasket's pressure rating and mechanical strength. The machine must handle these without deformation. |
| Cycle Time for a 12" 150# SWG | Approx. 90 - 120 seconds | A key productivity indicator, influenced by automation level and machine responsiveness. |
| Connected Load | 15 kW to 45 kW | Important for facility planning and operational cost calculations. |
These parameters are not just numbers on a datasheet; they are the direct levers controlling gasket quality. For instance, the ±0.05mm positioning accuracy of a Kaxite Sealing machine ensures that the outer sealing ring of a spiral wound gasket is perfectly concentric, eliminating potential leak paths. Similarly, the sophisticated tension control for graphite foil prevents over-stretching, which can create weak spots in the final product. Our machines are designed to be the reliable, repeatable heart of your sealing component production line.
Q: What is the main advantage of a CNC-controlled machine over a manual or semi-automatic one for producing graphite reinforced gaskets?
A: The primary advantage is unparalleled consistency and traceability. A CNC (Computer Numerical Control) system, like those used in Kaxite Sealing machines, digitally stores every parameter for a gasket design—inner diameter, outer diameter, winding count, pitch, pressure. Once a program is saved, the machine will reproduce identical gaskets every single time, eliminating human variance in speed, tension, or alignment. This is crucial for meeting quality assurance protocols in industries like oil & gas. Furthermore, CNC machines typically offer faster setup times for new batches and can produce more complex profiles with higher precision.
Q: How does the machine handle the fragility of pure graphite foil without causing tears or rips during the winding or stamping process?
A: This is a core engineering challenge. Advanced machines incorporate several key features: First, a precisely calibrated tension control system with servo-driven unwinders maintains a constant, gentle pull on the graphite roll. Second, a system of low-friction, polished guide rollers supports the foil through its path without pinching or scraping. Third, the tooling itself—whether a winding mandrel or stamping die—is designed with optimized radii and surfaces to guide the graphite smoothly. Kaxite Sealing machines often include integrated dust extraction at critical points to remove graphite particles, preventing them from interfering with the process and ensuring a clean work environment.
Q: Can one machine produce different types of graphite reinforced gaskets, such as spiral wound, kammprofile, and simple sheet gaskets?
A: While highly specialized "combo" machines exist, they are rare and can involve compromises. Typically, dedicated machines offer superior performance for their specific task. A spiral winding machine is optimized for the continuous coiling of metal strip and graphite filler. A kammprofile machine is essentially a high-precision milling or grinding center designed to cut the serrated grooves into a metal core before the graphite layer is applied. A hydraulic press is used for cutting sheet gaskets from laminated graphite/metal sheets. Kaxite Sealing often provides modular production cells where these dedicated machines are linked by automated material handling systems, creating a flexible line capable of producing a wide range of gasket styles with optimal efficiency for each type.
Q: What are the key maintenance requirements for these high-precision machines to ensure long-term reliability?
A: Preventive maintenance is essential. Daily tasks include cleaning graphite dust from guides, rollers, and sensors, and checking lubrication levels. Weekly inspections should focus on the tension of drive belts or chains and the condition of hydraulic fluids. Monthly maintenance involves checking the alignment of critical components like the winding head or press platens, verifying the calibration of pressure and position sensors, and inspecting electrical connections. Kaxite Sealing provides comprehensive maintenance schedules, easy-access design for key components, and remote diagnostic support to help operators predict and prevent issues, maximizing machine uptime and lifespan.
Q: How important is the tooling (dies, mandrels, punches) and how often does it need replacement or reconditioning?
A: Tooling is the direct interface with the product and is critically important. Worn or damaged tooling will directly result in defective gaskets. The lifespan depends on the materials processed (stainless steel vs. more abrasive alloys) and production volume. For stamping dies, edges can be re-sharpened periodically. Winding mandrels, which define the gasket ID, are subject to wear from the metal strip. High-quality, hardened tool steel is a must. Kaxite Sealing designs its machines with quick-change tooling systems and offers a full range of precision-ground, durable tooling. We recommend regular inspection and maintain a library of tooling designs to ensure fast replacement or reconditioning services.
Q: What level of training is required for operators to run these advanced machines effectively?
A: Modern machines from Kaxite Sealing are designed with operator-friendliness in mind. The intuitive touchscreen HMI guides the user through setup and operation. However, effective training is multi-layered: Basic operational training covers daily startup, running pre-set programs, and basic troubleshooting. Advanced training delves into creating and optimizing new gasket programs, performing basic calibration, and understanding the interplay between machine parameters and gasket quality. We provide extensive on-site training during commissioning and offer advanced courses at our facilities, ensuring your team can not only run the machine but also leverage its full capabilities for productivity and quality gains.
