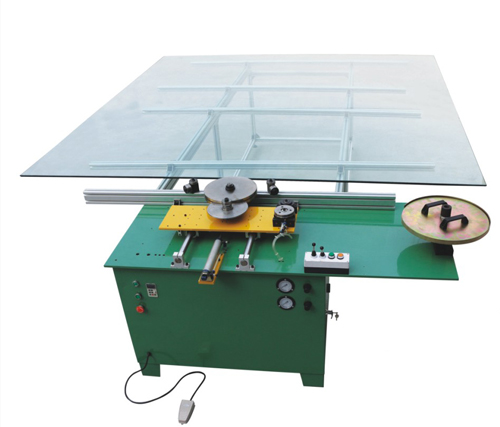

Semi-Automatic Horizontal Big Size Winder

Kaxite Sealing's Semi-Automatic Horizontal Big Size Winder revolutionizes handling large rolls with ease. Ideal for industrial and manufacturing sectors, it efficiently winds materials like textiles and films, using durable materials and intuitive design for smooth operation. Outperforming competitors with robust construction and user-friendly features, it solves time-consuming winding challenges, enhancing productivity and reliability. Experience seamless efficiency and elevate your operations with this essential tool. Act now for enhanced output.

Send Inquiry

Product Description

Specification as following:
STYLE	KXT E2500B Manual winder	KXT E2500C Semi-automatic winder
Producing ability	SWG with or without IR	SWG with or without IR
SWG thickness	4.5mm (also suitable for 3.2mm, 6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option)	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option)
Maximum gasket OD	2500mm or 3200mm	2500mm or 3200mm
Minimum gasket ID	300mm	300mm
Total power	2.2kw	8kw
Spindle motor power	0.75kw	0.75kw
welder power	/	6kw
Power supply	380V/220V for option, 3 phases	380V/220V for option, 3 phases
linear speed	0-800mm/s	0-800mm/s
Air compressor	0.6—0.8 MPA	0.6—0.8 MPA
Frequency Converter	2.2G	2.2G
PLC	/	xinjie
Machine measurement	34002600980mm	34002600980mm
Machine net weight	500kg	550kg
