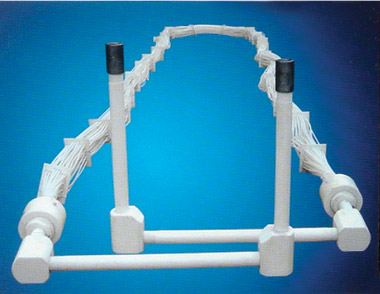

PTFE Heat Exchanger

Kaxite Sealing's PTFE Heat Exchanger offers unmatched corrosion resistance and high-efficiency heat transfer, ideal for chemical processing applications. Its PTFE construction ensures durability and low maintenance, solving corrosion issues while enhancing operational reliability. This innovative solution outperforms traditional materials, providing long-term cost savings and peace of mind for industrial users seeking superior performance.

Send Inquiry

Product Description

[ Features ]

PTFE heat exchanger contains two parts, PTFE extruded tubings which are manufactured by dispersion raw materials and PTFE sticks which are manufactured by suspension raw materails. PTFE has reiable properties of anticorrosive, not aging, heat resistance, non-stick and self-lubrication. So PTFE heat exchanger has a wide application, long life of use. It is stable and easy to clean and install, all of which makes it the most ideal heat exchanger.

[ Main properties ]

Properties	Unit	Result
Tensile strength (min)	MPa	15
Ultimate elongation (min)	%	160
Heat Exchange Rate (min)	%	90
Temperature Limit		250
Compressive Strength	MPa	0.4

[ Applications ]

Grooves of acid, plating bath chromeplate bath, etc.

[ Types and Parameters ]

Number of Tubings	Tubing Size	Heat Exchange Area (m²)
10	6X1200	2.26
25		5.65
50		11.30


GS-U Type	GS-L Type	GS-O Type
