Expanded PTFE Sheet

Kaxite Expanded PTFE Sheet is made from 100% virgin PTFE through a proprietary biaxial expansion process, producing a uniform fibrillated microstructure with equal tensile strength in all directions. Service temperature is −180°C to +260°C, with a pH range of 0–14 for the strongest chemical resistance in the PTFE gasket family. Standard thicknesses include 1/32", 1/16", 3/32", 1/8", 3/16" and 1/4"; standard sheet size is 60" × 60" in white or blue. Custom thicknesses, sheet sizes and die-cut gaskets are available. Samples are available for evaluation before bulk orders.

Send Inquiry

Product Description

Expanded PTFE Sheet (ePTFE Sheet)

Kaxite Expanded PTFE Sheet is manufactured from 100% virgin PTFE that is expanded through a proprietary biaxial orientation process. The result is a uniform, highly fibrillated microstructure with equal tensile strength in all directions, laminated to the required thickness. Unlike standard skived or molded PTFE, the expanded structure delivers a soft, conformable sealing surface that seals at low bolt load and recovers well under thermal cycling.

The sheet resists virtually all industrial chemicals across a pH range of 0–14 and does not contaminate the process media it contacts. It is widely used to cut flange gaskets, manway and handhole gaskets, and custom die-cut sealing components in chemical, petrochemical, food & beverage, pharmaceutical and power generation plants. Custom sizes, thicknesses and die-cut gaskets can be produced to drawing.

Product Snapshot

Expanded PTFE Sheet from Kaxite Sealing. Material: 100% virgin PTFE, biaxially expanded. Temperature: −180 °C to +260 °C. pH range: 0–14. Thickness: 1/32", 1/16", 3/32", 1/8", 3/16", 1/4". Standard sheet size: 60" × 60". Colors: white, blue. Best-in-class chemical resistance with no media contamination. Custom sizes and die-cut gaskets supported. Samples available for evaluation.

Material100% virgin PTFE, biaxially expanded

StructureFibrillated microstructure, laminated to thickness

Temperature−180 °C to +260 °C

pH range0–14

Thickness1/32", 1/16", 3/32", 1/8", 3/16", 1/4"

Standard size60" × 60"

ColorsWhite, Blue

Custom cuttingDie-cut gaskets to drawing

OEM / ODMSupported

SampleAvailable for evaluation

Why buyers choose Kaxite as their expanded PTFE sheet supplier

Consistent thickness tolerance and density from sheet to sheet, controlled during lamination rather than only at final check.
Material traceability — PTFE resin batch and expansion parameters are recorded for project documentation.
Full OEM/ODM support: custom thicknesses, custom sheet sizes, die-cut gaskets to drawing, private-label marking.
One supplier for PTFE sheets, PTFE gaskets, PTFE rods/tubes and other sealing materials — simplifying sourcing and shipping.
Direct factory communication with engineers who understand flange sealing and can recommend the right sheet for your medium.

Material Structure & Advantage

Expanded PTFE is produced by stretching virgin PTFE under controlled conditions in two directions. The process creates millions of interconnected PTFE fibrils, giving the sheet a soft, multidirectional structure that is fundamentally different from molded or skived PTFE.

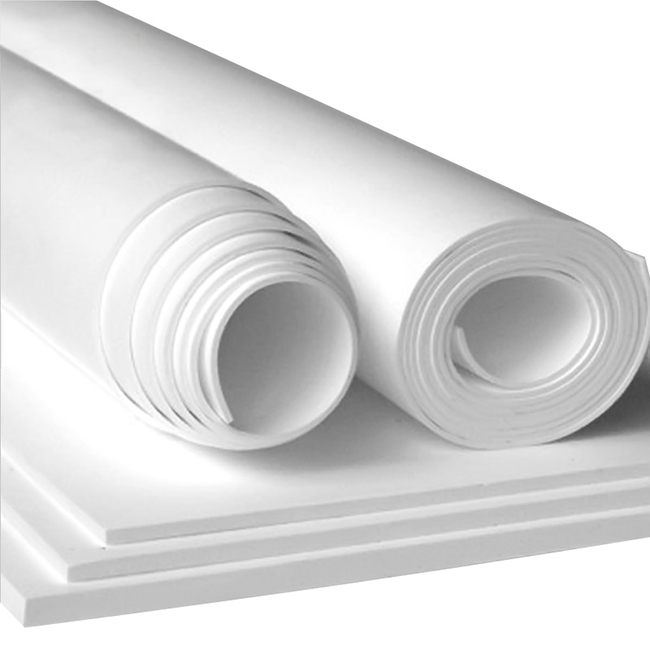

Expanded PTFE Sheet white biaxial oriented sheet for chemical resistant gaskets

ePTFE Sheet

Biaxially Oriented Expanded PTFE Sheet

Uniform, highly fibrillated microstructure with equal tensile strength in all directions.
Soft and conformable, seals at low bolt load and recovers well under thermal cycling.
Available in white and blue, standard 60" × 60" sheets, in 1/32" to 1/4" thickness.

Expanded PTFE sheet cutting into flange gaskets and die-cut sealing components

Custom Cutting

Die-Cut & Fabricated Gaskets

Cut to flange gaskets, manway and handhole gaskets, and non-standard sealing shapes.
Water-jet, die-cut or CNC cutting, held to your drawing tolerances.
Suitable for chemical, food & beverage, pharmaceutical and power generation service.

Typical Applications

Distilleries and fermentation equipment
Petrochemical and general chemical processing
Food and beverage production lines
Pharmaceutical and clean-process equipment

Power generation plants
Iron and steel manufacturing
Pulp and paper mills
Flange, manway and handhole sealing

Prime Features

Best chemical corrosion resistance among PTFE gasket materials.
pH range 0–14 — resists strong acids and strong bases.
Does not contaminate the media it contacts — suitable for food, pharmaceutical and clean-process service.
Equal tensile strength in all directions due to biaxial orientation.
Soft, conformable sealing surface that performs well at low bolt load.
Service temperature range of −180 °C to +260 °C.
Available in 1/32", 1/16", 3/32", 1/8", 3/16" and 1/4" thicknesses.
Standard sheet size 60" × 60", white or blue.

Technical Data

Expanded PTFE Sheet — standard specifications
Property	Value
Material	100% virgin PTFE, biaxially expanded
Temperature range	−180 °C to +260 °C
pH range	0–14
Standard thickness	1/32", 1/16", 3/32", 1/8", 3/16", 1/4"
Standard sheet size	60" × 60"
Colors	White, Blue
Custom size	Available on request

Packaging & Delivery

Expanded PTFE sheets are rolled or laid flat with protective interleaving, then packed in cartons or on pallets to prevent creasing and edge damage during shipping. Custom carton marking and private-label packaging are available for OEM orders.

Standard sheets are protected with interleaving film and packed in cartons or on pallets.
Die-cut gaskets are packed flat and labelled by size and material for easy site handling.
Custom carton marking, pallet labelling and private-label packaging available.

How to Order

To quote accurately and quickly, please provide the following information with your inquiry:

Sheet thickness and sheet size, or die-cut gasket drawing
Color preference (white or blue)
Quantity — number of sheets or number of pieces per gasket size
Required delivery date and destination port
Any documentation requirements (material certificate, inspection report)

Get a quotation for your expanded PTFE sheet project

Send your thickness, sheet size or gasket drawing — our engineers will reply with pricing and lead time within 24 hours.

Request a Quote Download Catalogue WhatsApp

FAQ

What is Expanded PTFE Sheet and how is it different from standard PTFE sheet?

Expanded PTFE Sheet is made from 100% virgin PTFE that is stretched in two directions (biaxial orientation), creating a fibrillated microstructure. Standard molded or skived PTFE sheets are denser and harder. Expanded PTFE is softer, seals at lower bolt load, and conforms better to imperfect flange surfaces while still offering the full chemical resistance of PTFE.

What temperature and pH range does Expanded PTFE Sheet cover?

The service temperature range is −180 °C to +260 °C. The material is resistant to chemicals across a pH range of 0–14, covering strong acids and strong bases. For specific media (for example strong oxidisers, molten alkali metals or fluorine at high temperature), please send us the operating conditions and we will confirm suitability.

What thicknesses and sheet sizes are available?

Standard thicknesses are 1/32", 1/16", 3/32", 1/8", 3/16" and 1/4". The standard sheet size is 60" × 60", available in white or blue. Other thicknesses and sheet sizes can be produced on request.

Can you supply die-cut gaskets or custom shapes?

Yes. We produce die-cut gaskets and custom shapes to your drawing. Send the drawing (DWG, DXF, PDF or a sample) and we will confirm tooling, unit price and lead time. Non-circular shapes, manway and handhole gaskets are all supported.

Do you provide material certificates and inspection reports?

Material certificates and inspection reports can be provided for production orders. Please specify the required documentation in your inquiry so that we can confirm what is available for your order.

Can I get a sample before placing a bulk order?

Yes. Samples are available for evaluation. Please provide the thickness, sheet size or gasket drawing you need, and we will confirm sample availability and delivery time.

What is your typical lead time?

Lead time depends on thickness, sheet size, quantity and whether die-cut tooling is required. Standard sheet sizes and stock thicknesses are generally faster; custom die-cut gaskets may require extra time for tooling. Please confirm with our team when requesting a quotation.

Direct FactoryNingbo Kaxite Sealing Materials Co., Ltd.

OEM / ODMCustom thickness, size and die-cut gaskets

Full RangePTFE sheets, gaskets, rods, tubes and more

24h ReplyEngineer response within one working day

Learn more about our company and browse related products such as PTFE Sheet and Compression Sheets.
