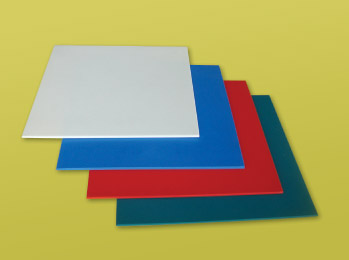

PTFE Resin Moded Sheet

PTFE Resin Moded Sheet,You Can Buy Various High Quality PTFE Resin Moded Sheet Products from Global PTFE Resin Moded Sheet Suppliers and PTFE Resin Moded Sheet Manufacturers at Kaxite Sealing.


Send Inquiry


Description
With professional PTFE Resin Moded Sheet factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Resin Moded Sheet manufacturers and suppliers.
[ Features ]
PTFE molded sheet is manufactured by molding method with PTFE granular resin.
PTFE is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180%°C - +260°C.



[ Specifications ]

Length(mm)×Width(mm)

Thickness(mm)

Nominal

Tolerance

150×150

1.0-30

±0.30-±0.50

250×250

1.5-30

±0.30-±0.50

300×300

1.5-30

±0.30-±0.50

450×450

1.5-30

±0.30-±0.50

600×600

2-30

±0.30-±0.50

800×800

3-30

±0.30-±0.50

1000×1000

3-30

±0.30-±0.50

1200×1200

3-30

±0.30-±0.50

1000×2000

5-35

±0.30-±0.60

1500×1500

5-30
±0.30-±0.50

1800×1800

8-30
±0.30-±0.50

2000×2000

8-30
±0.30-±0.50
[ Main properties ]

Properties

Unit

Result

Apparent density

g/cm3

2.10-2.30

Tensile strength (min)

MPa

15.0

Ultimate elongation (min)

%

150

Dielectric strength(min)

KV/mm

10


[ Applications ]
Lining Bearing pads, seals, and electrical insulation.
