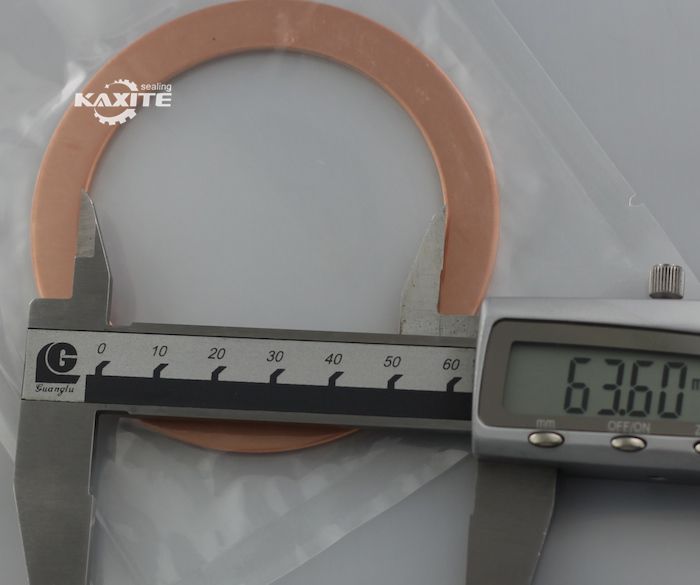

Oxygen Free Copper Gaskets

To make a leak tight UHV seal between two conflat flanges, a gasket is required. OFHC (oxygen free high conductivity) copper is normally used as this sealing material as it is very clean, can easily be formed to shape, has a wide temperature range, and has a low outgassing rate.

Type	A	B	Oxygen-free Copper
			Order no.	weight /kg
16	21.3	16.2	7355	0.01
25	35	25.6	7356	0.01
35	48.1	36.8	7357	0.02
50	61.6	52	7358	0.02
63	82.4	63.6	7359	0.05
80	99	82	7360	0.07
100	120.5	102	7361	0.07
150	171.3	152.5	7362	0.1
200	222.1	203	7363	0.14
250	273.1	254	7364	0.2

Standard size: CF16, CF25, CF35,CF50, CF63, CF80, CF100, CF150, CF200, CF250.

We also manufacture the non-standard copper gasket seals upon your requirement.
